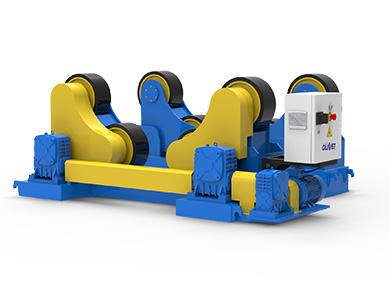

What is a Self-Aligning Rotator?

Self-Aligning Rotators offer a robust and rugged design with long-lasting and reliable rollers that perform the task of rotating the workpiece during the welding process.

Self-Aligning Rotators do not require you to manually adjust the wheels before the welding process and automatically align the welding rollers onto the workpiece.

Due to their self-aligning characteristic, you can even use Self-Aligning Welding Rotators on irregular or uneven surfaces.

Self-Aligning Welding Rotators also save up time and labour costs and are highly efficient in performing their job. They have a low probability of errors and save you from over-exerting yourself.

With the help of Self-Aligning Welding Rotators, you can choose to either perform manual welding or automatic welding, whatever seems to be convenient for you.

What can You Use Self-Aligning Rotators for?

Self-Aligning Welding Rotators are used to serve the purpose of ensuring that your workpiece remains in place. At the same time, it is being rotated to perform the welding process thoroughly.

You can use Self-Aligning Welding Rotators to rotate cylindrical vessels such as fuel drums, pressure vessels, pressurized containers, heat exchangers, silos, boilers, oil tankers, generators, wind towers, pipelines, etc.

You can mainly use them in automatic welding of round or ring metal. The vessel's surface does not matter in Self-Aligning Welding Rotators, and you can even operate uneven surfaced workpieces on it.

What are the Different Parts of a Self-Aligning Welding Rotator?

Self-Aligning Welding Rotators are sold in a complete set that consists of multiple parts that make up the entirety of a Self-Aligning Welding Rotator and enable it to perform effectively.

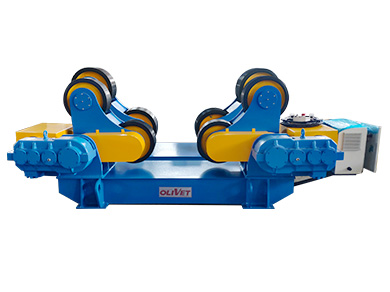

Self-Aligning Welding Rotators are made up of one drive unit and one idler unit. You can purchase as many drive units and idler units as you desire, depending on the activity that you need to carry out.

Self-Aligning Welding rotators consist of trunnion brackets that support the wheels to automatically align them according to the change that occurs in the diameter of the workpiece.

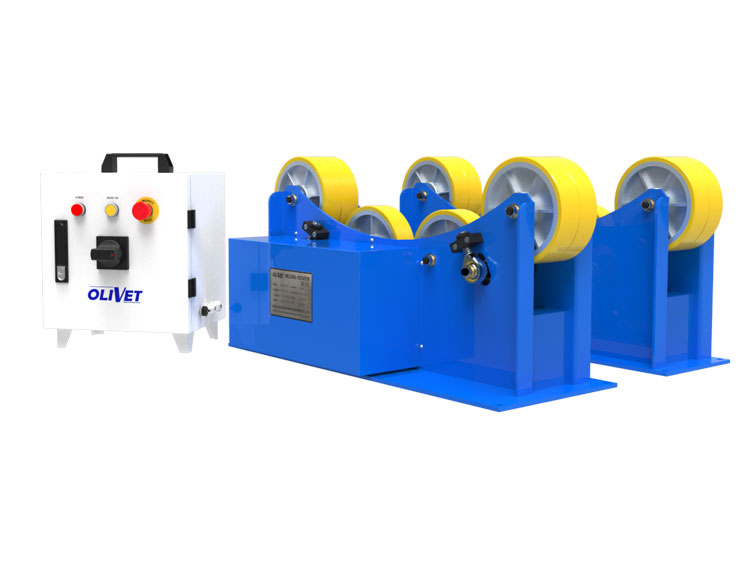

Your supplier would provide you with a whole set of Self-Aligning Welding Rotators consisting of the following equipment:

1 Power and 1 Idler turning roll

1 Electric control system

One control panel

One remote pendant

How do Self-Aligning Welding Rotators Operate?

The Self-Aligning Welding Rotator comprises three simple components that operate together to ensure that the functions are appropriately performed. The central support unit, as well as the motorized drive, are examples of these components.

When you place the workpiece on the rollers, the polyurethane or rubber material rollers that are part of the support unit perform the job of absorbing the loading shock.

The polyurethane or rubber material rollers are often designed to protect the workpiece during the welding process. An overload disk made of steel protects the wheels from damage and shock.

The motorized drive ensures the equipment's operation. You can also include additional features such as foot-controlled levers, pendant controls, digital screens, and anti-drift components to guarantee that the workpiece remains stable and does not move.

What Benefits do Self-Aligning Rotators Offer You?

Self-Aligning Welding Rotators are known for their added benefits that set them apart compared to other kinds of welding rotators. Some of the advantages that they offer you are as follows:

Increase in productivity

Self-Aligning Rotators are much faster than manual welding devices and visibly increase the production rate of your factory.

Since you can control the speed of your Self-Aligning Rotator according to your production rate, you can perform the welding process at a much steady pace which allows you to take up huge orders and not fall behind on your work deadlines.

Self-Aligning Welding Rotators also do not waste any material, time, or minerals and perform their job thoroughly, which is why they are known to increase your productivity.

Reduction of labour fatigue

Manual welding processes are straining and require the labour to over-exert themselves to acquire the desired results.

However, since Self-Aligning Rotators are usually operated by a single person and are completely automated machinery, they reduce labour fatigue and allow them to rest.

Even if labour is used to perform the welding task while the Self-Aligning Welding Rotator rotates the workpiece for a thorough performance, it does not burden the labour as they have to stay in one place and do the welding usually. In contrast, the Self-Aligning Welding Rotator ensures that it is done with accuracy.

Welding is a dangerous and exhausting job, and you should only perform it through the use of automated machinery such as Self-Aligning Welding Rotators.

Safety requirement

Self-Aligning Rotators are constructed considering all safety requirements and are specifically designed to offer protection to the labour. They are immune to potential hazards in the workplace and prevent injuries and accidents.

You can also take extra precautions to enhance the safety elements in Self-Aligning Welding Rotators, such as ensuring that all the parts are perfectly fitted and there are no loose screws.

Consistent accuracy

Self-Aligning Rotators operate with the help of specific algorithms, due to which they can provide you with consistent results. Since they have no room for errors, there is preciseness and accuracy.

Compared to manual welding, Self-Aligning Welding Rotators offer you a far more thorough job and ensure that the welding process is performed with finesse and swiftness.

Due to their low rate of potential errors, Self-Aligning Welding Rotators remain in demand throughout the automation industry.

Cost reduction

It does not require you to hire labour to adjust the workpiece during the welding process as they do not require any manual alignment.

They save up vast sums of labour costs and profit with the increased production rate. They also do not waste any minerals; hence there is no loss of resources.

It is better to invest in Self-Aligning Welding Rotators than labour costs.

What Kind of Characteristics do Self-Aligning Rotators Offer You?

Self-Aligning Welding Rotators offer you the following characteristics:

No manual adjustment required

Decreased rate of time consumption

Improved quality of products

Lesser job handling

Variable speed rotation

Economic price range

How Much of a Load can You Put on Self-Aligning Rotators?

The capacity of handling weights in Self-Aligning Welding Rotators depends upon the size of the rotator itself. Different sizes of Self-Aligning Welding Rotators would offer you different weight capacities.

You can not put a more significant load on your Self-Aligning Welding Rotator than its actual size. For instance, if your Self-Aligning Welding Rotator is weighed 50 tonnes, you should ensure that the load you are putting on it is lesser than that amount.

A wide variety of Self-Aligning Rotators can handle a load ranging from about 5 tons to 800 tonnes.

What Kind of Material Suits Better for Self-Aligning Rotators?

Thin-walled vessels are better suited as workpieces for Self-Aligning Welding Rotators as they provide you with better traction and allow the rotator to rotate freely.

The four-point suspension in Self-Aligning Welding Rotators is a tremendous advantage for thin-walled vessels. It allows them to be loaded quickly without damage caused to the vessel or the rotator and ensure maximum support.

What Functions can Self-Aligning Welding Rotators Perform?

Self-Aligning Welding Rotators are responsible for performing the following functions for you:

The idler unit of Self-Aligning Welding has certain limitations, such that they can only rotate in some specific directions: forward, stop, or reverse.

Just as the idler unit, the driving unit of Self-Aligning Welding Rotators can also only perform the function of moving forward, stopping, or moving in reverse.

The rotation speed also matters in Self-Aligning Welding Rotators, and they perform an efficient job in maintaining it and keeping the pace of the production output steady.

Self-Aligning Welding Rotators also possess the function of emergency stopping the welding process in case of any hazard or error.

What is the Average Speed that Self-Aligning Welding Rotators Offer You?

One of the most beneficial features of Self-Aligning Welding Rotators is that their speed can be controlled, and you can either increase it or decrease it according to your factory's production rate.

The average speed of Self-Aligning Welding Rotators usually reaches about 6 to 60 meters per hour, irrespective of the size and motor power of the rotator.

You can also increase this range to reach your desired speed and perform the welding task faster.

You can use the electromagnetic step-less speed control to adjust the speed of your Self-Aligning Welding Rotator.

In What Industries can You Use Self-Aligning Welding Rotators in?

Self-Aligning Welding Rotators are most commonly used in large-scale welding factories that require maximum efficiency and safety in the workplace.

The following workplaces necessitate the use of Self-Aligning Welding Rotators in their premises, and you are essentially required to perform the welding process through automated machinery here:

Pipe manufacturing industries

Chemical petrol industries

Wind power fabrication

Offshore and onshore gas industries

Chemical & fuel storage tank fabrication

Conventional power industries

General and other fabrication industries

Welding repair industry

Any heavy cylindrical job

What Makes Self-Aligning Rotators a Better Alternative for You Compared to Conventional Rotators?

In a Self-Aligning Welding Rotator, when you mount a pipe or vessel onto the sections of the wheel brackets, their self-aligning mechanism allows the wheels to automatically align themselves, regardless of ovality, to match any diameter within their radius.

However, in conventional rotators, you must manually adjust the wheel brackets around the frames to match the different diameters within their radius.

The top wheels of the Self-Aligning Welding Rotators either possess clutches or are free-wheeling, allowing you to mount the vessel into the sections of the wheel brackets without any risk of damaging the transmission drive due to improper loading.

On the other hand, since conventional rotators lack clutches, they are more likely to cause harm to the transmission drive if you load a vessel improperly on the rollers.

The workpiece is usually supported on four wheels with Self-Aligning Welding Rotators, which enables positive rotation, exceptionally when accommodating welded joints on the workpiece and is also less prone to leaving dents on the workpiece if it is a thin-walled vessel.

Conventional rotators are more time-consuming than Self-Aligning Welding Rotators and do not produce goods at such a quick pace.

What Are Some Tips You can Apply for the Maintenance of Self-Aligning Rotators?

When performing inspection or maintenance of your Self-Aligning Welding Rotators, you need to make sure that the motor is turned off and the power plug is removed.

Following are some tips you need to apply to extend the life span of your Self-Aligning Welding Rotator.

It would help if you filled the speed reducer with 30# oil and replaced it every month for the first few months and after every half month after that.

You should ensure that rubber rollers do not contact oil or are exposed to elevated temperatures.

If the bearings of your Self-Aligning Welding Rotators have failed, the earth connecting cable cannot be attached to the rotators.

There are specific requirements of Self-Aligning Welding Rotoatrs regarding the surroundings which you need to follow. They include that there should be no contact with rainwater or no presence of corrosive gas, and the temperature should be as per the requirement mentioned in the instruction manual.

Stay on the lookout for any odours, noises, or vibrations in your Self-ALigning  Rotators.

What is the Maximum and Minimum Diameter of Self-Aligning  Rotators that You can Get?

The pipe diameter varies according to the size of the Self-Aligning Welding Rotator. For instance, the pipe diameter of a small-sized 5 tons will range from about 250mm to 2500mm.

While the pipe diameter of a large-sized 100 tons will range from about 1000mm to 6300mm.

The specail requests on bigger diameters with light duty are also be designed accordingly to meet.

Normal service life of self-adjusting rotators?

Under good maintenance condition, the normal service life is more than 3 years, OLIVTE provides one year warranty for the whole machine without human factors. Lifetime after-sales maintenance service is provided.

In What Price Range can You Purchase a Suitable Self-Aligning  Rotator?

Self-Aligning Welding Rotators are considerably economical and serve you with good results for the long run. They do not require you to spend much money on maintenances and repairs as you can easily do them yourself.

Customized Self-Aligning Welding Rotators are also available for you; however, they will cost you a bit more than the standard ones.

How can Self-Aligning Rotators Upgrade Your Business?

Self-Aligning Rotators are currently in great demand due to their added benefits, and people are willing to invest much more in them as they provide unmatchable results quickly.

Due to this, they are bound to bring in a ton of profit for you and your business and enable you to make further developments.

You can also purchase different kinds of welding rotators for your factory through the profit you gain, which will enable you to be on top of the competition as you will be able to perform all kinds of welding jobs.

Self-Aligning Rotators also increase the production process of your goods and enable you to take in large orders and work well with deadlines. You can also take more orders due to their production output.

We hope this guide cleared out all your queries regarding Self-Aligning Rotators, and you are now completely aware of their pros and cons.

The purpose of this guide is to help you in the complex process of determining which welding rotator to opt for, and we hope you have made up your mind regarding the decision now.
