WELDING ROTAOR – HGZ Series

Advantages of the Modular System

Specifically designed to rotate pipe for circular welding, cutting, and painting jobs.

Enable flexible configuration to adapt to pipes of different diameters and lengths, enhancing operational versatility.

Reduces setup time significantly compared to traditional systems, improving overall workflow efficiency.

Ensures uniform rotation speed, which is crucial for achieving high-precision results in welding and surface treatment processes.

Features

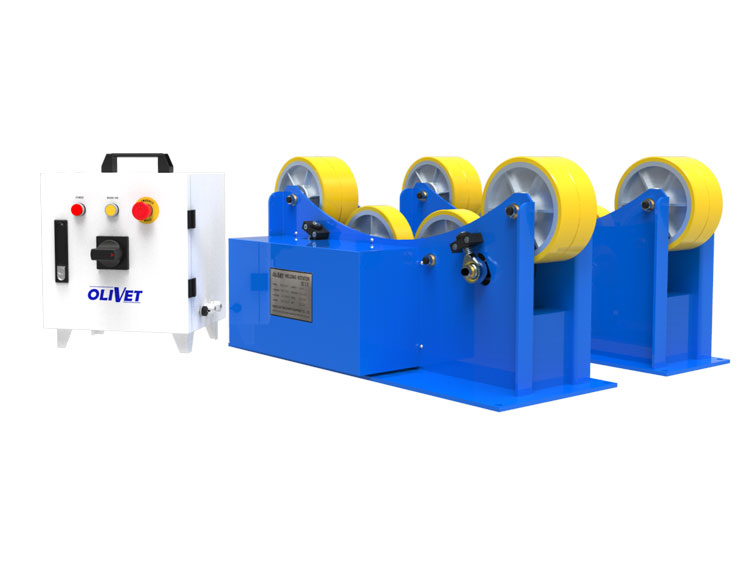

• Device for the turning and positioning of small tanks and cylindrical workpieces.

• Equipped with high performance PU-coated metal roller to provide stable running.

• AC variable speed control system.

• Switch for cw/ ccw rotation, foot switch for start/ stop functions.

• High frequency protection.

Scope of Delivery

• 1 Power and 1 Idler turning rolls

• 1 Electric control system

  1 Electric control cabinet


  1 Remote Control panel

  1 Foot Switch





Main Technical Parameters

Welding rotators are similar to positioners, in that its a mechanical means to rotate cylindrical vessels. They minimise handling, increase efficiency, and dramatically improve the quality of workmanship from welders of all skill levels. WUXI OLIVET MACHINERY EQUIPMENT CO., LTD. can supply conventional rotators and self-aligning welding rotating machines to suit various sizes of weldments across a variety of sectors. Our products have passed the quality inspection standards, so our products have a long working life.

Product application

Any steelworks with cylindrical vessels, be it small diameter piping to large industrial cylindrical vessels for windtower production, a welding rotators will be beneficial, sometimes a necessity. If the weldment is cylindrical, a welding rotators will make a huge difference to most welding processes including, SAW, TIG, MIG and ARC.

This product allows the rotation of cylindrical pieces with diameter and weight according the range. Each rotator is composed of a mechanical structure and rotation roller motorized or not, with continuous rollers adjusting with screw. In motorized version, the rotator is equipped of an electrical cabinet. It has also a remote control with 2 rotation directions: speed control by potentiometer. We can design new products for you according to your needs!

Moreover, its easy maintenance and durable components help reduce operational costs in the long run, making it a cost-effective solution for enterprises engaged in cylindrical welding and processing tasks.

our service

Self-Aligning Welding Rotators is one of oue main products, as a professional automatic welding equipment manufacturer in China, we can supply different kinds welding equipment. You can choose the Welding Rotators according to the load capacity. We guarantee product quality and delivery time! If you are finding welding equipment such as conventional rotators, self-aligning welding rotator and welding positioners company, you can choose us. We also provide customized solutions to meet your sprcific technical requirements. Our professional technical team offers on-site installation guidance and operation training to ensure your staff can use the equipment proficiently. Additionally, we have a 24/7 after-sales service hotline to resolve any equioment issues promptly, minimizing your production downtime.

If you want to know more about product prices, please feel free to contact us by phone or email, we will reply you in the shortest time!
