Double Column Positioner - TWS Seriess

Double Column Positioner - TWS Seriess

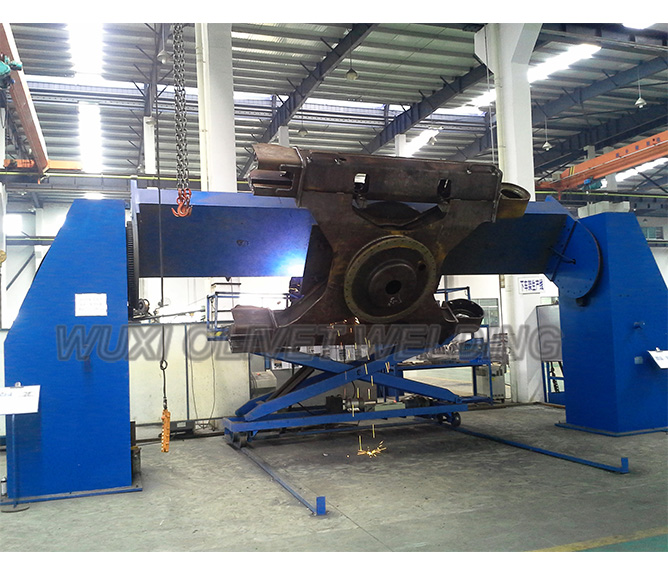

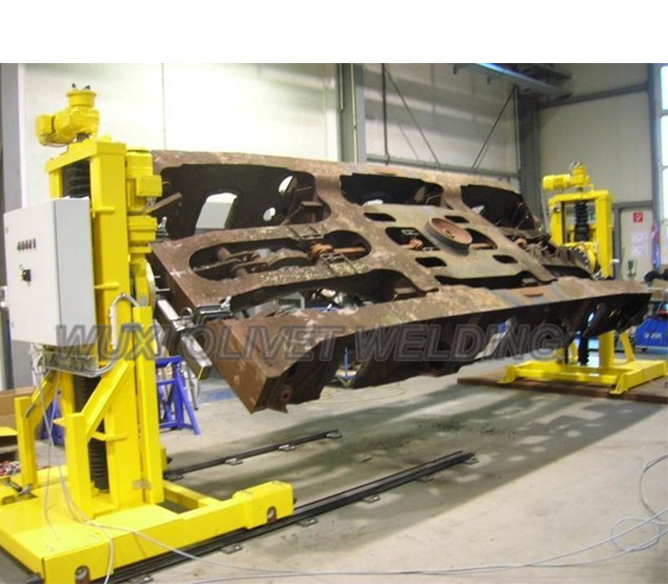

A double base welding positioner is a machine that is used to hold and position workpieces for welding. It consists of two bases that are mounted on a rotating platform, and a pair of jaws that can hold the workpieces in place.

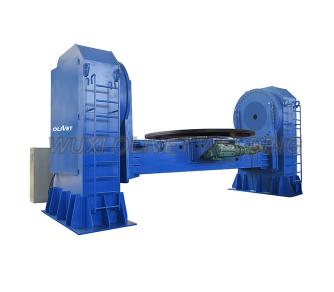

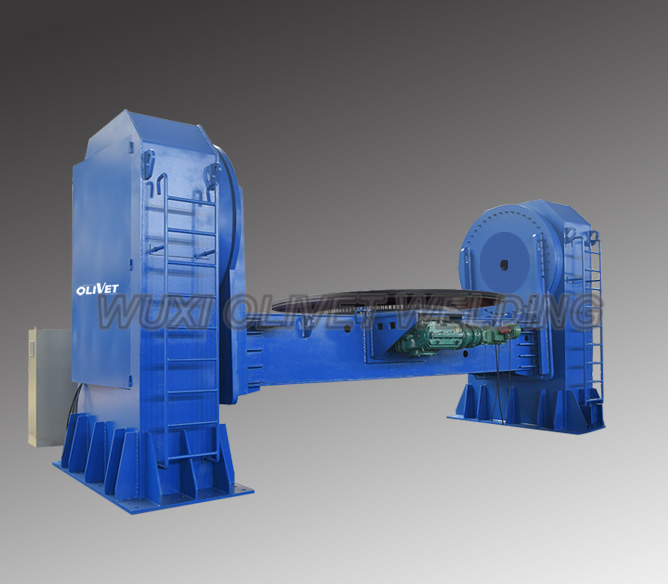

    Double Column Three Axies Welding Positioner - TWS Series


    A double base welding positioner is a machine that is used to hold and position workpieces for welding. It consists of two bases that are mounted on a rotating platform, and a pair of jaws that can hold the workpieces in place. The positioner can be adjusted to various positions and angles, allowing the welder to easily access the weld joint from all sides. This makes it easier to perform high-quality welds in difficult-to-reach locations, and helps to improve the efficiency and accuracy of the welding process.

    Stable Rotating Process

    Olivet company has a comprehensive range of positioner for automatic welding. These very versatile handling tools enable welding to be carried out in the optimum positions to benefit the quality of the work. Olivet's positioners are with capacities ranging for 100 to 200,000kgs.

    TWS type double columns Welding Positioners can provid a good and efficeint solution on the problem of a large range angles of  rotating and tilting.

    Scope of Delivery

    A.  1 Main body

    B.  1 Electric control system

        1 control panel

        1 remote pendant


    Main technical parameter


    Model

    Max. load

    Distance of Gravity

    Eccentricity distance

    Rotation speed

    Tilting range

    Table diameter

    TWS50

    5,000 kg

    600 mm

    200 mm

    0.05-0.5 rpm

    360°

    1,800 mm

    TWS100

    10,000 kg

    600 mm

    200 mm

    0.05-0.5 rpm

    360°

    2,000 mm

    TWS200

    20,000 kg

    1,000 mm

    200 mm

    0.04-0.4 rpm

    360°

    2,200 mm

    TWS300

    30,000 kg

    1,500 mm

    200 mm

    0.03-0.3 rpm

    360°

    2,500 mm

    TWS500

    50,000 kg

    2,000 mm

    200 mm

    0.02 - 0.2 rpm

    360°

    3,000 mm

    TWS1000

    100,000 kg

    2,500 mm

    200 mm

    0.01 - 0.1 rpm

    360°

    4,000 mm
