Welding Turntable - HJ Series

Stable Rotating Process

Olivet has a comprehensive range of positioner / welding turntable for automatic welding. These very versatile handling tools enable welding to be carried out in the optimum positions to benefit the quality of the work. Olivet's welding positioners are with capacities ranging for 300 to 500,000kgs.

HJ Series welding turntables are the best solution to the problem of rotating demanding big work pieces. Rotation speed can be very fast under VFD adjustable. They have infinitely variable height control as a result of a remote control of all functions.

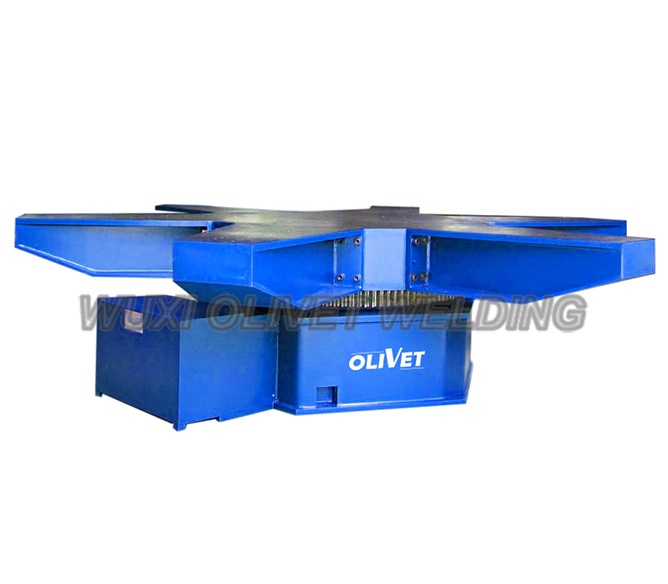

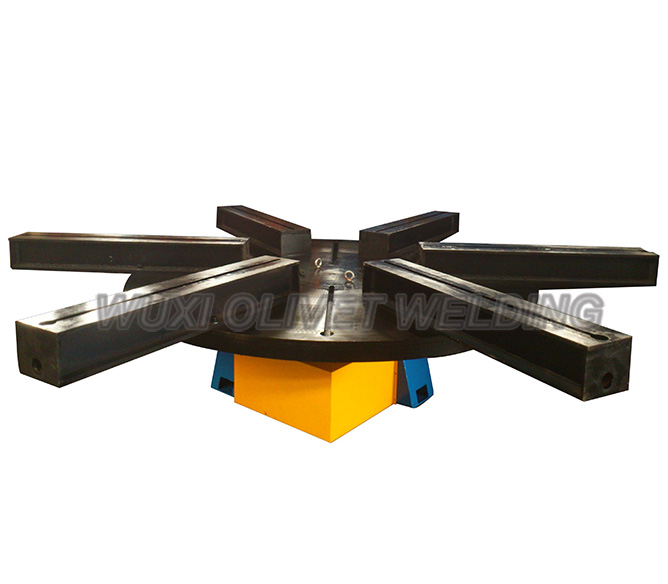

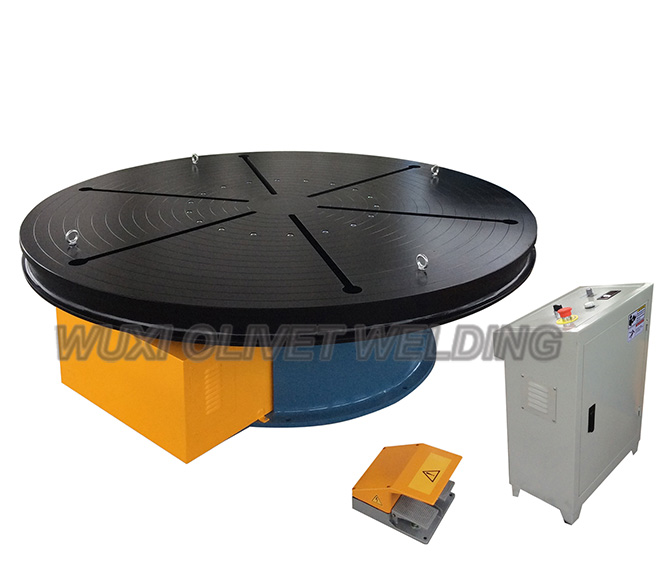

Scope of Delivery

A. 1 Main Body

B. 1 Electric control system

1 control panel

1 remote pendant

1 foot switch

Main Technical Parameters of Welding Turntable

Model	Max. load	Eccent. distance	Rotation speed	Motor Power	Table Height	Table diameter
HJ-10	1,000 kg	300 mm	0.1 - 1 rpm	0.37 kW	413 mm	1000 mm
HJ-20	2,000 kg	300 mm	0.1 - 1 rpm	0.55 kW	413 mm	1200 mm
HJ-30	3,000 kg	300 mm	0.1 - 1 rpm	0.75 kW	512 mm	1400 mm
HJ-50	5,000 kg	300 mm	0.1 - 1 rpm	0.75 kW	520 mm	1800 mm
HJ-100	10,000 kg	300 mm	0.05 - 0.5 rpm	1.5 kW	600 mm	2000 mm
HJ-200	20,000 kg	300 mm	0.04 - 0.4 rpm	3 kW	650 mm	2000 mm
HJ-300	30,000 kg	300 mm	0.04 - 0.4 rpm	4 kW	700 mm	2000 mm
HJ-500	50,000 kg	300 mm	0.02 - 0.2 rpm	5.5 kW	1000 mm	3000 mm
HJ-800	80,000 kg	300 mm	0.02 - 0.2 rpm	5.5 kW	1150 mm	3200 mm
HJ-1000	100,000 kg	300 mm	0.02 - 0.2 rpm	11 kW	1200 mm	3500 mm
