Olivet's column and boom welding manipulator could be assembled to automatic welding system with the welding turning roll, automatic welding machine, welding control system, etc. It's widely used in boiler, pressure vessel, chemical petroleum, metallurgical construction, and machinery.

    Welding Manipulator (Column and Boom)


    Stable Movement Process

    Olivet's welding manipulator could be assembled to automatic welding system with the welding turning roll, automatic welding machine and welding control system, etc. It's widely used in industries as boiler, pressure vessel, chemical petroleum, metallurgical construction and machinery for inner and outer longitudinal welding and circumferential welding of various seams on cylindrical members. It consists of a base, a column, and an arm that can be moved and positioned using motors or hydraulic cylinders. The welding torch or gun is mounted on the end of the arm, and can be moved to different positions around the workpiece to perform the welding operation. Welding manipulators are often used in heavy manufacturing industries where there is a need to weld large, heavy components or structures, as they can help to improve the accuracy and consistency of the welding process, reduce operator fatigue, and increase productivity. Get in touch with us today to discuss your needs!


    The welding manipulator is advanced structure design, multi-functions and easy operation. Then increasing production capacity and assure the quality. Its durable construction ensures that it can withstand even the toughest industrial environments, making it a reliable and long-lasting addition to your welding equipment.


    The welding manipulator could be divided into light, standard type、heavy and super-heavy according to weight-bearing, effective vertical and horizontal stroke. According to actual usage, the manipulator can be divided into fixed, fixed with rotation and moveable with rotation, etc.


    Welding manipulators are crucial for automating and enhancing welding operations. They include various types such as welding head manipulators and column and boom welding manipulators. Automatic welding manipulators offer advanced automation for increased efficiency. The welding column and column and boom manipulators are designed for versatility in welding applications. For specialized tasks, pipe welding manipulators and welding column and boom setups provide tailored solutions to meet specific welding needs.


    Features

    Advanced structure

    Complete function

    Improving of welding quality

    Big loading capacity at the top of boom


    Scope of supply

    A. 1 column and 1 beam assembly

    B. 1 Trolley or fixed base

    C. 1 Service ladder

    D. 1 Electrical control system


    Main technical parameters

    Type

    QLH (light)

    LH (middle)

    ZLH (heavy)

    LHW (super-heavy)

    Vertical stroke, m

    1-3

    2-6

    1-3

    3-15

    Horizontal stroke, m

    1-3

    2-6

    1-3

    4-15

    Beam elevating speed, mm/min

    600

    600

    600

    800

    Beam Horizontal speed, mm/min

    100-1500

    100-1500

    100-1500

    100-1500

    Beam Horizontal speed control

    AC frequency conversion stepless inverter speed regulation (VFD)

    Min height under boom(A), mm

    300

    400

    400

    600

    Min distance from center line of column to the front end of the boom (B), mm

    500

    1000

    1000

    1000

    Column revolving

    Angle(°)

    ±180

    ±180

    ±180

    ±180

    Speed(rpm)

    By manual

    0.11/By manual

    0.11/By manual

    0.11/By manual

    Trolley moving speed, mm/min

    By manual

    2000

    2000

    2000

    Trolley height (C), mm

    300

    440

    440

    440

    Inner side distance of rail if have (D), mm

    1200

    1500

    2000

    2500

    Whether you're working on large-scale projects or intricate welds, our welding manipulator can handle it all. Its versatile design allows it to be customized to your specific needs, providing you with the ultimate flexibility and control over your welding operations.


    Applications of Welding Manipulators

    Welding manipulators find applications in various industries, including shipbuilding, aerospace, automotive, construction, and more. They are particularly useful in tasks that involve long welds on large workpieces, where human fatigue and inconsistency can pose challenges.

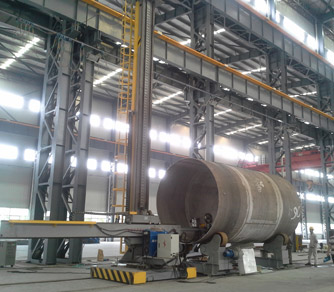

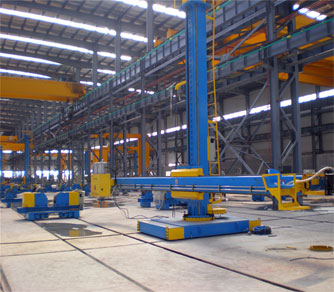

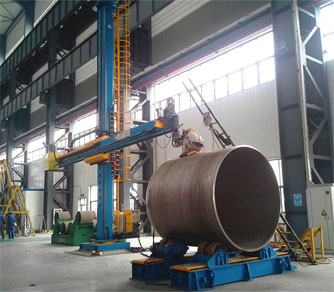

    Welding manipulator scene pictures



FAQs

1. Are welding manipulators suitable for small-scale welding operations?

While welding manipulators are often associated with large-scale applications, they come in various sizes, making them adaptable to both small and large welding tasks.


2. Can welding manipulators replace skilled welders entirely?

Welding manipulators complement skilled welders and enhance their capabilities. Skilled welders are still essential for programming, monitoring, and ensuring the quality of welds.


3. What are the main factors to consider when choosing a welding manipulator?

The main factors to consider include the size of the workpiece, the required reach, weight capacity, and the level of automation needed.


4. Are welding manipulators user-friendly?

Modern welding manipulators often come with user-friendly interfaces and intuitive controls, making them accessible to operators with proper training.


5. How do welding manipulators contribute to cost savings?

Welding manipulators increase productivity and reduce the risk of errors, leading to cost savings in the long run due to improved efficiency and weld quality.
