How Does a Welding Oscillator Work?

Welding oscillators are essential tools in modern welding processes, enhancing both the quality and efficiency of welds. They automate the side-to-side movement of the welding torch, resulting in a more controlled and consistent weld bead. This article explores how welding oscillators work, including their mechanisms, control features, applications, and benefits.

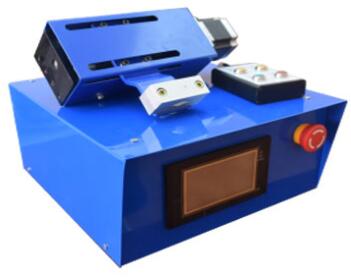

Welding oscillator

Mechanisms of Welding Oscillators

Welding oscillators operate by creating a precise, controlled side-to-side movement of the welding torch or electrode. This oscillation is achieved through various mechanisms, each suited to different applications and environments.

Mechanical Oscillators

Mechanical oscillators use cams, gears, and levers to generate the oscillating motion. The cam rotates, pushing a lever back and forth, which in turn moves the welding torch. This method is robust and reliable, making it suitable for heavy-duty welding tasks. The mechanical nature of these oscillators ensures durability and consistent performance, even in demanding conditions.

Pneumatic Oscillators

Pneumatic oscillators rely on air pressure to drive the oscillating movement. Compressed air is directed into a pneumatic cylinder, causing it to extend and retract, which moves the welding torch. Pneumatic oscillators are often used in environments where electrical components might pose a hazard, such as in flammable or explosive atmospheres. They are also valued for their simplicity and ease of maintenance.

Electromagnetic Oscillators

Electromagnetic oscillators use magnetic fields to control the movement of the welding torch. An electromagnet generates a magnetic field that interacts with a magnetic arm attached to the torch, causing it to oscillate. These oscillators offer precise control and can be easily programmed to adjust oscillation parameters. They are ideal for applications requiring high accuracy and repeatability.

Control Features of Welding Oscillators

The effectiveness of a welding oscillator depends largely on its control features. Modern oscillators come equipped with advanced controls that allow operators to fine-tune the welding process.

Speed Control

Oscillation speed control is crucial for achieving the desired weld bead characteristics. Faster oscillation speeds can produce wider weld beads, while slower speeds result in narrower beads. Operators can adjust the speed to match the specific requirements of the welding task.

Amplitude Control

Amplitude control refers to the distance the welding torch travels during each oscillation cycle. By adjusting the amplitude, operators can control the width of the weld bead. Larger amplitudes are used for wider beads, while smaller amplitudes create narrower beads. Precise amplitude control ensures consistent weld quality.

Dwell Time

Dwell time is the period the welding torch pauses at the endpoints of the oscillation. Adjusting the dwell time can influence the heat input and penetration of the weld. Longer dwell times increase penetration, which is useful for thicker materials. Shorter dwell times reduce heat input, minimizing the risk of burn-through on thinner materials.

Applications of Welding Oscillators

Welding oscillators are used in various industries and applications to enhance welding quality and efficiency.

Pipe Welding

In pipe welding, oscillators ensure uniform weld beads around the circumference of the pipe, improving joint integrity and reducing defects. The precise control of oscillation parameters is critical for achieving consistent results.

Structural Fabrication

For structural fabrication, such as building and bridge construction, oscillators produce strong and consistent welds in steel and other metals. The automation provided by oscillators increases productivity and ensures high-quality welds.

Automotive Industry

In the automotive industry, oscillators enhance the quality and efficiency of welds in vehicle frames and components. The precision and consistency of oscillated welds contribute to the safety and durability of the final product.

Benefits of Using Welding Oscillators

Incorporating welding oscillators into the welding process offers numerous advantages.

Improved Weld Quality

Oscillators ensure uniform penetration and bead appearance, reducing the likelihood of defects. The consistent oscillation results in high-quality welds with fewer imperfections.

Increased Productivity

Automation of the oscillation process allows welders to work more efficiently, reducing the time required for manual adjustments. This leads to faster project completion and lower labor costs.

Enhanced Precision

The ability to control oscillation parameters precisely results in higher accuracy and repeatability. This precision is particularly important for applications requiring strict adherence to specifications.


Welding oscillators are invaluable tools for improving weld quality, efficiency, and precision. Understanding how they work and their various features can help you make the most of these devices in your welding processes. For expert advice or to find a reliable supplier, feel free to contact us. We are here to assist you in choosing the best welding solutions for your projects.
