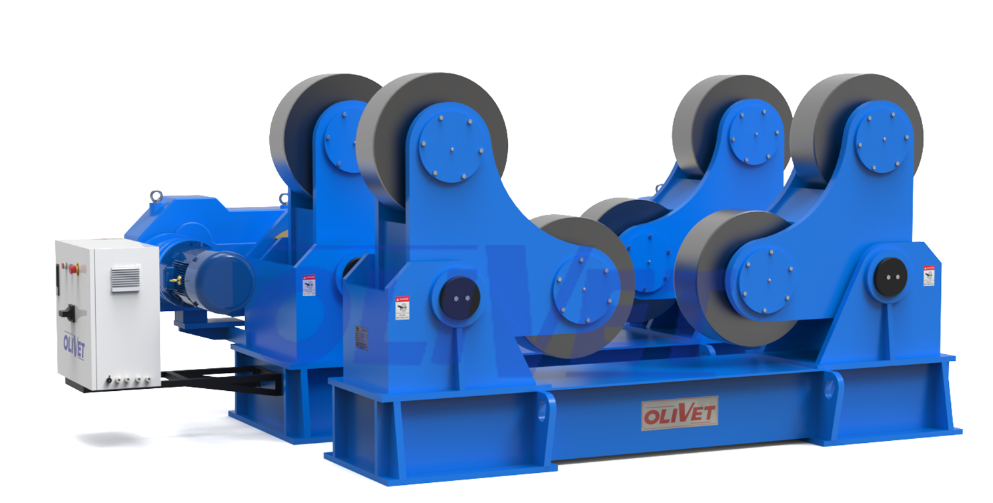

Double Driving Self Aligning Rotator-HGZT Series

The HGZT series double driving self aligning rotator has two drive units which arrange of a continuous rotation with frequency convension stepless speed controlling, ensuring precise speed regulation and stable torque output. The 4 rollers joint align themselves via the diameter of the workpiece.

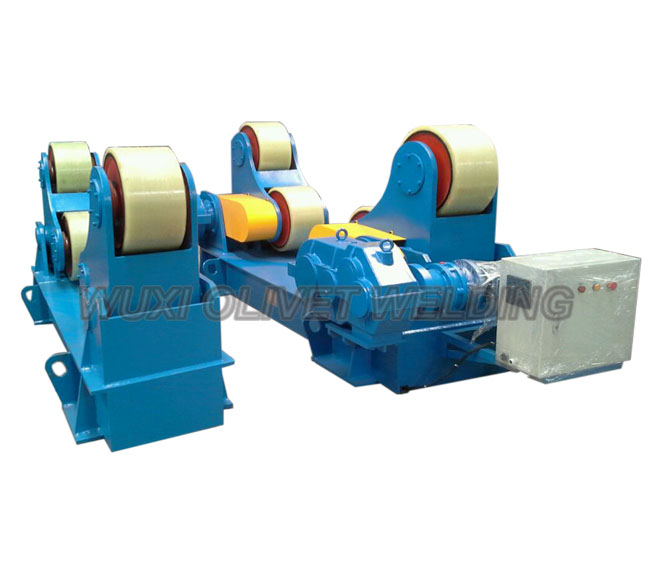

Self aligning Welding Rotator - HGZT Series

Stable Rotating Process

The HGZT series has two synchronously operating drive units which arrange for a continuous rotation with frequency conversion stepless speed controlling, ensuring precise speed regulation and stable torque output.

The 4 rollers joint align themselves via the diameter of the workpiece, adapting to different workpiece sizes automatically for effecient processing. It features reliable performance and low maintenance, suitable for high-precision roating applications.

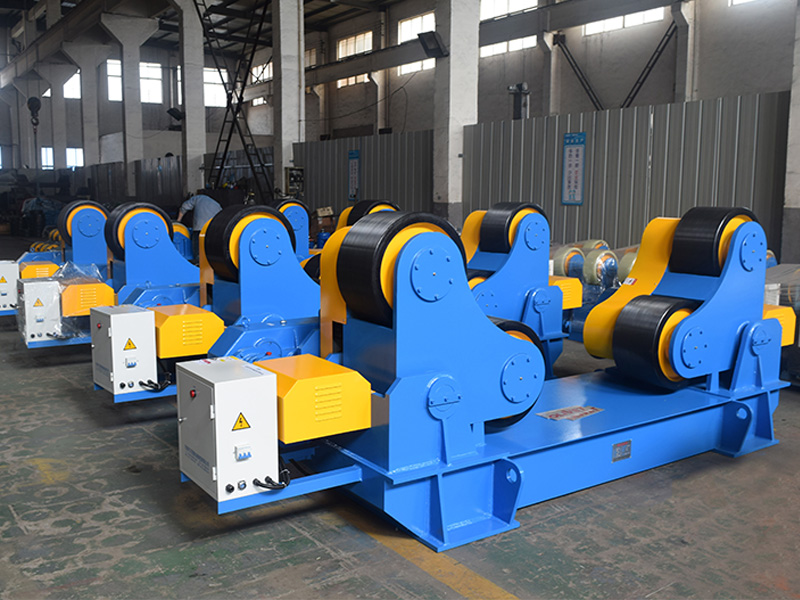

Self Aligning Rotator Features

A. For turning and positioning workpieces in the sections of mechanical engineering, container building, plant construction and pipeline construction.

B. Welded, robust steel construction.

C. VFD control system.

D. Schneider, Siemens electrical components.

E. Compact and robust design, easy to operate.

Scope of Delivery

A. 1 Drive and 1 Idler turning rolls

B. 1 Electric control system

1 control cabinet

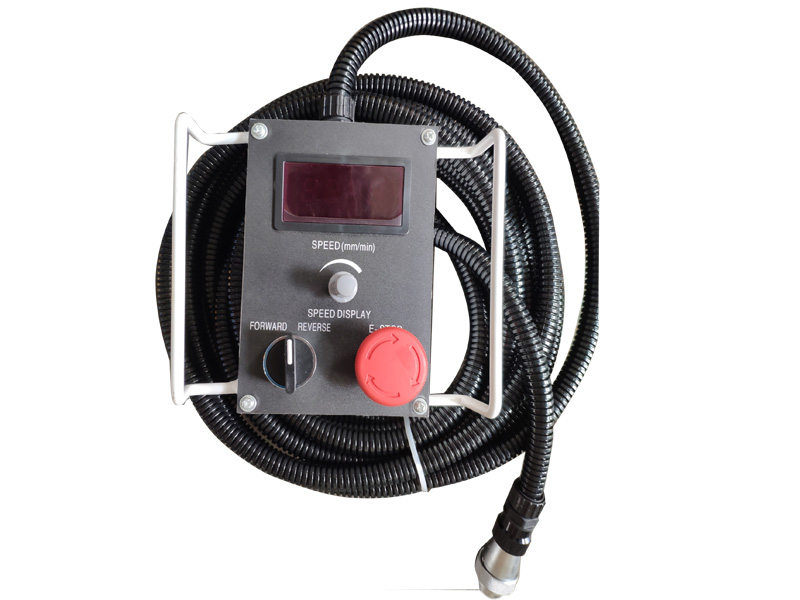

1 remote control panel

Self Aligning Rotator Main Technical Parameters

Model	Max. load	Workpieces dia.	Roller material	Roller dia.	Roller width	Rolling speed	Roller motor
HGZT-5	5,000kg	Ø250-Ø2,500mm	Steel coated with PU	Ø250mm	100mm	6-60m/h	2x0.37kw
HGZT-10	10,000kg	Ø320-Ø3,200mm	Steel coated with PU	Ø300mm	120mm	6-60m/h	2x0.55kw
HGZT-20	20,000kg	Ø500-Ø3,800mm	Steel coated with PU	Ø350mm	150mm	6-60m/h	2x1.1kw
HGZT-30	30,000kg	Ø550-Ø4,000mm	Steel coated with PU	Ø350mm	160mm	6-60m/h	2x1.5kw
HGZT-40	40,000kg	Ø600-Ø4,500mm	Steel coated with PU	Ø400mm	160mm	6-60m/h	2x1.5kw
HGZT-60	60,000kg	Ø750-Ø5,000mm	Steel coated with PU	Ø450mm	180mm	6-60m/h	2x2.2kw
HGZT-80	80,000kg	Ø850-Ø5,500mm	Steel coated with PU	Ø450mm	240mm	6-60m/h	2x3kw
HGZT-100	100,000kg	Ø1,000-Ø6,300mm	Steel coated with PU	Ø500mm	240mm	6-60m/h	2x3kw
HGZT-150	150,000kg	Ø1,000-Ø6,300mm	Steel coated with PU	Ø500mm	360mm	6-60m/h	2x4kw
HGZT-200	200,000kg	Ø1,000-Ø6,300mm	Steel	Ø600mm	200mm	6-60m/h	2x4kw
HGZT-250	250,000kg	Ø1,000-Ø6,500mm	Steel	Ø600mm	220mm	6-60m/h	2x5.5kw
HGZT-300	300,000kg	Ø1,000-Ø6,500mm	Steel	Ø650mm	200mm	6-60m/h	2x5.5kw
HGZT-500	500,000kg	Ø1,000-Ø8,000mm	Steel	Ø700mm	300mm	6-60m/h	2x7.5kw

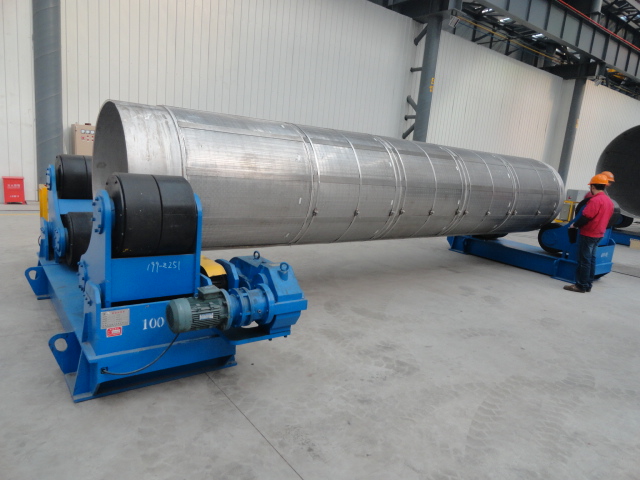

Self Aligning Rotator Application

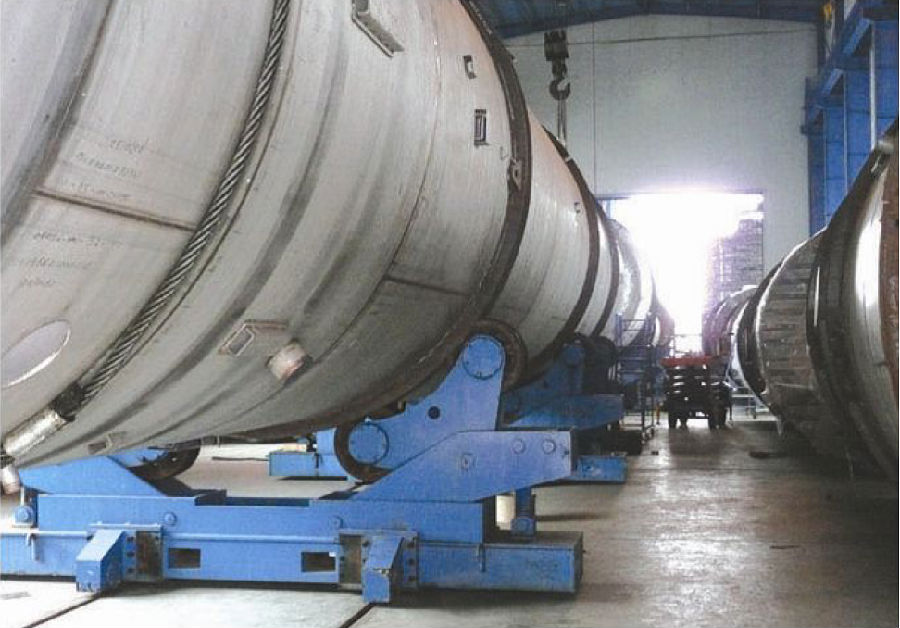

Self Aligning Rotator
