Self Aligning Rotator-HGZ Series

The HGZ series has one drive unit which arrange of a continuous rotation with frequency convension stepless speed controlling. For turning and positioning workpieces in the sections of mechanical engineering, container building, plant construction and pipeline construction.

Self aligning Welding Rotator - HGZ Series

Stable Rotating Process

The HGZ series has one drive unit which arrange of a continuous rotation with frequency conversion stepless speed controlling (VFD).The 4 rollers joint align themselves via the diameter of the workpiece, ensuring precise rotation and quick adaption to workpiece sizes, ideal for efficient cylindrical part processing. It boasts low energy consumption and quiet operation, making it a cost-effective choice for worksahops with strict noise and energy effeciency requirements.

Features

A. For turning and positioning workpieces in the sections of mechanical engineering, container building, plant construction and pipeline construction.

B. Welded, robust steel construction.

C. VFD control system.

D. Schneider, Siemens electrical components.

E. Compact and robust design, easy to operate.

F. Full steel wheels optional.

Scope of Delivery

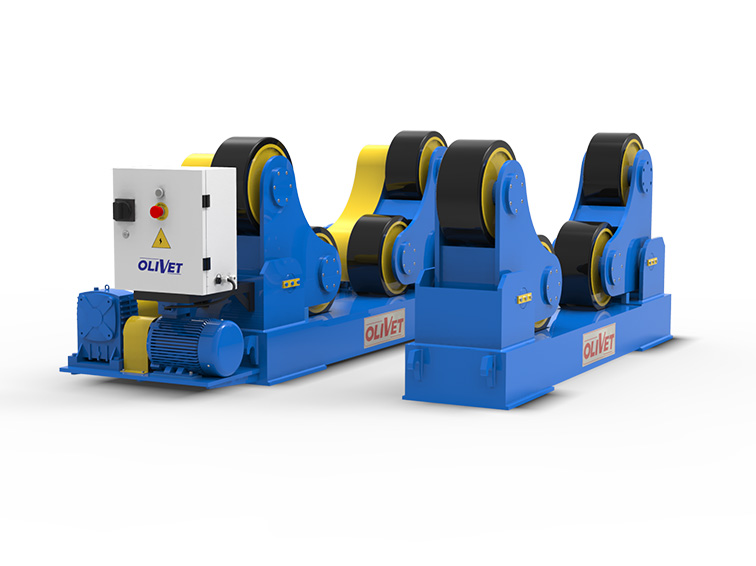

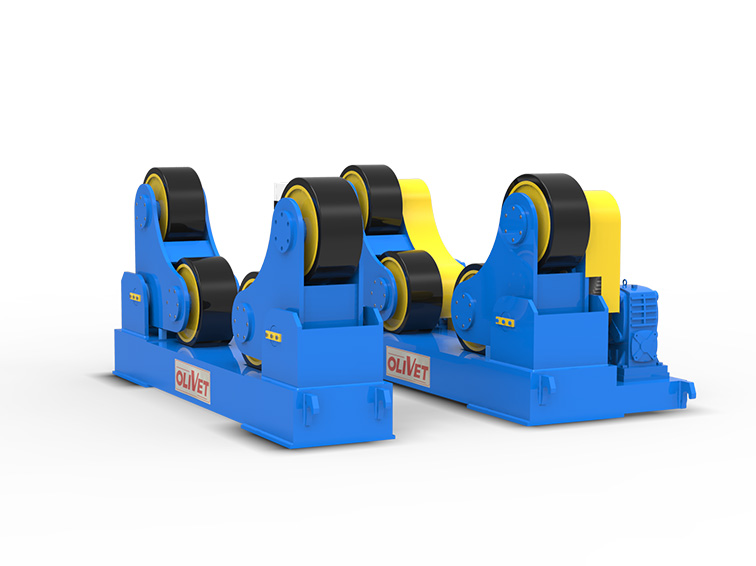

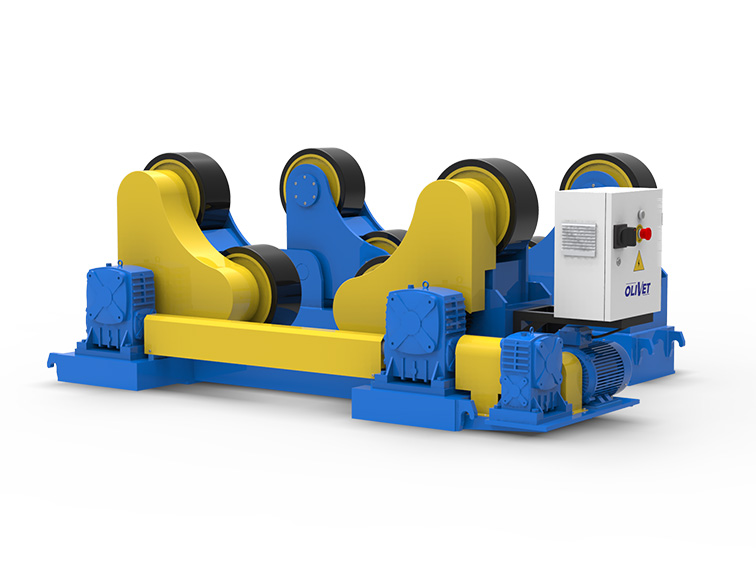

A. 1 Power and 1 Idler turning rolls

B. 1 Electric control system

1 control cabinet

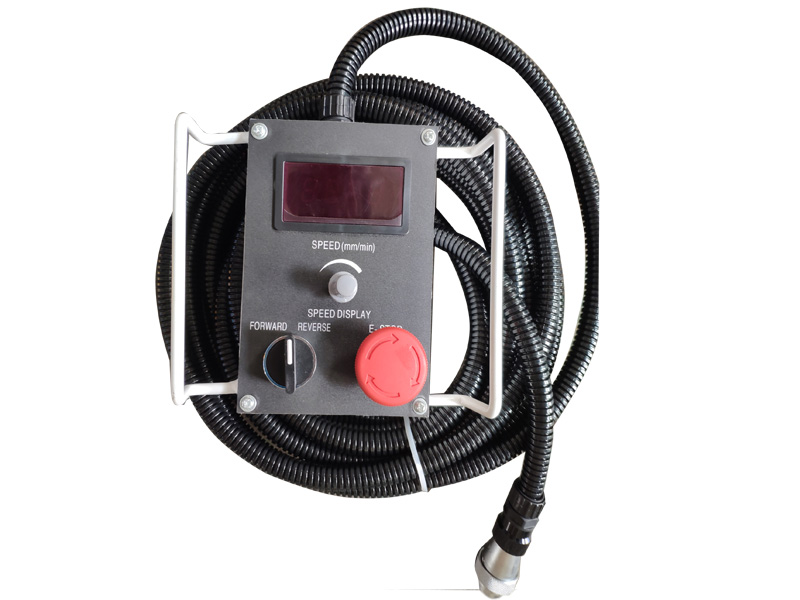

1 remote control panel

Main Technical Parameters

Model	Max. load	Pipe dia.	Roller material	Roller dia.	Roller width	Rolling speed	motor
HGZ-5	5,000kg	Ø250-Ø2,500mm	Steel coated with PU	Ø250mm	100mm	6-60m/h	0.75kw
HGZ-10	10,000kg	Ø320-Ø3,200mm	Steel coated with PU	Ø300mm	120mm	6-60m/h	1.1kw
HGZ-20	20,000kg	Ø500-Ø3,800mm	Steel coated with PU	Ø350mm	150mm	6-60m/h	1.5kw
HGZ-30	30,000kg	Ø550-Ø4,000mm	Steel coated with PU	Ø350mm	160mm	6-60m/h	2.2kw
HGZ-40	40,000kg	Ø500-Ø5,000mm	Steel coated with PU	Ø400mm	160mm	6-60m/h	3kw
HGZ-60	60,000kg	Ø750-Ø5,000mm	Steel coated with PU	Ø450mm	180mm	6-60m/h	4kw
HGZ-80	80,000kg	Ø950-Ø5,500mm	Steel coated with PU	Ø450mm	240mm	6-60m/h	4kw
HGZ-100	100,000kg	Ø1,000-Ø6,300mm	Steel coated with PU	Ø450mm	240mm	6-60m/h	4kw

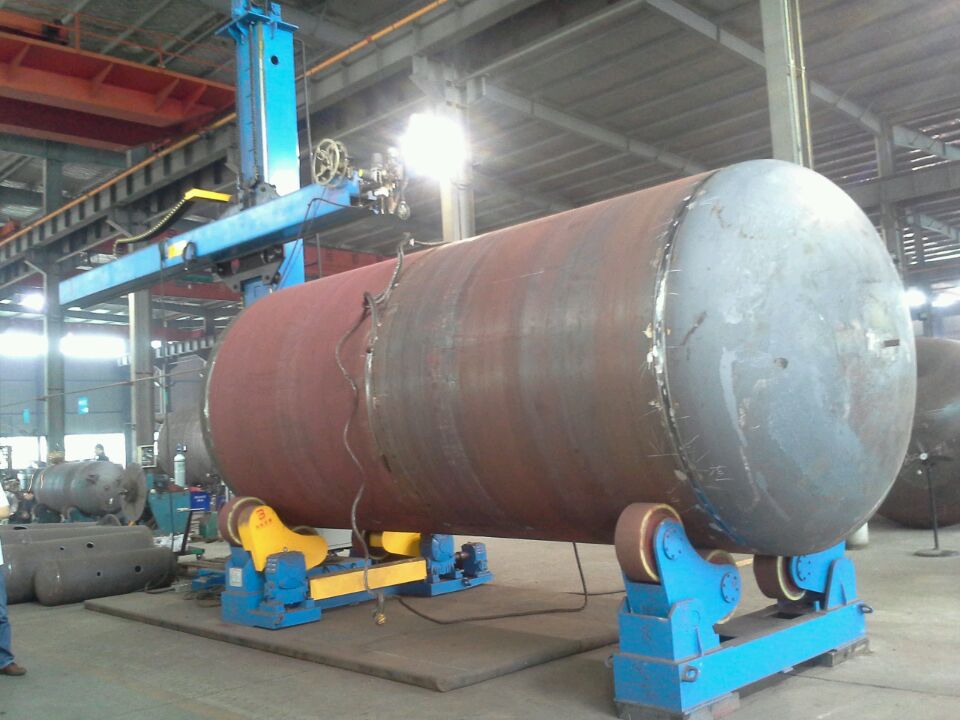

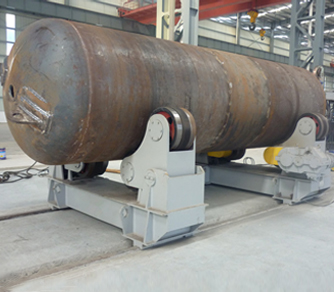

Application

Self Aligning Rotator-HGZ Series
