How Do Elbow Welding Positioners Work?

In the realm of automatic welding, Olivet Company has established itself as an industry leader, offering a comprehensive range of positioners designed to optimize welding processes. Among their innovative solutions, the Elbow Welding Positioner is a standout tool that revolutionizes the welding of long seams in heavy-duty elbows. In this article, we delve into the intricacies of how these positioners work, shedding light on the advanced technology that drives their precision and efficiency.

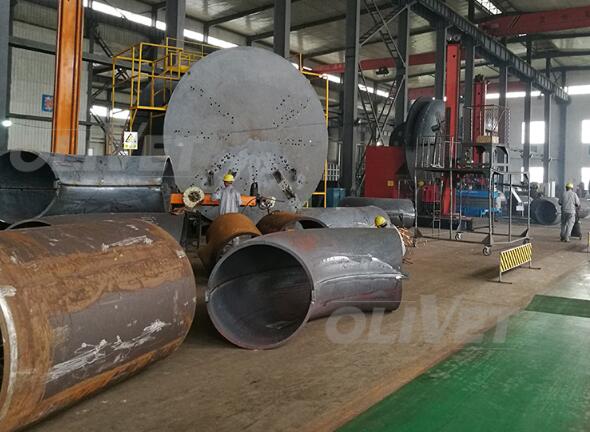

Elbow Welding Positioner

Versatile Handling for Optimal Welding Positions

Olivet's Elbow Welding Positioners are crafted as versatile handling tools, allowing for welding in optimal positions. This versatility is crucial for achieving the highest quality of work. The positioners, with capacities ranging from 100 to 200,000 kilograms, provide stability and adjustability, enabling welders to work with precision and accuracy across various applications.

Components of Elbow Long Seam Welding Center

The heart of Olivet's solution for long seam welding in heavy-duty elbows lies in the Elbow Long Seam Welding Center. This comprehensive system comprises three key components:

1. Elevating Head Stock Positioner:

The elevating head stock positioner serves as the foundation for the welding process. It allows for the adjustment of the welding angle, ensuring that the elbow is positioned optimally for the long seam welding operation.

2. Sub-Arc Welding Machine:

The sub-arc welding machine is responsible for delivering the welding heat to create strong and durable seams. It is a pivotal element in the process, contributing to the overall efficiency and quality of the weld.

3. Sub-Arc Tractor:

The sub-arc tractor is a mobile component that travels along the long seam of the elbow, delivering the welding operation. It works in conjunction with the gyroscopic sensor to enable automatic rotation of the welding column, ensuring precision and consistency in the weld.

Automated Rotation with Gyroscopic Sensor

The key to the Elbow Welding Positioner's efficiency lies in its ability to automate the rotation of the welding column. As the sub-arc tractor travels along the long seam of the elbow, a gyroscopic sensor comes into play. This sensor detects changes in orientation and prompts automatic rotation of the welding column. The result is a seamless and precise welding operation that eliminates the need for manual adjustments, reducing the risk of errors and ensuring uniformity in the weld.

Tailored for 45/90 Degree Elbows

The Elbow Welding Positioner is specifically designed to cater to elbows with angles of 45 or 90 degrees. Its adaptability extends to accommodate a diameter range from 600 to 2000 millimeters, making it suitable for a variety of industrial applications. With a loading weight capacity of up to 8 tons, it is well-equipped to handle heavy-duty projects.

Contact Us for Advanced Welding Solutions

For those seeking advanced welding solutions and the operational benefits offered by Olivet's Elbow Welding Positioners, please don't hesitate to contact us. Our expert team is ready to provide in-depth information and assistance tailored to your specific welding needs. Whether you're a welding professional or an industrial manufacturer, Olivet Company is committed to supporting your endeavors.

Explore Top-Notch Welding Equipment from a Trusted Supplier

Discover a comprehensive range of welding equipment from Olivet Company, a trusted supplier renowned for delivering cutting-edge solutions. Elevate your welding capabilities with innovative tools designed to enhance precision and efficiency. Trust in Olivet's expertise for optimal welding performance across diverse applications.
