Technical Requirements for Welding Positioners

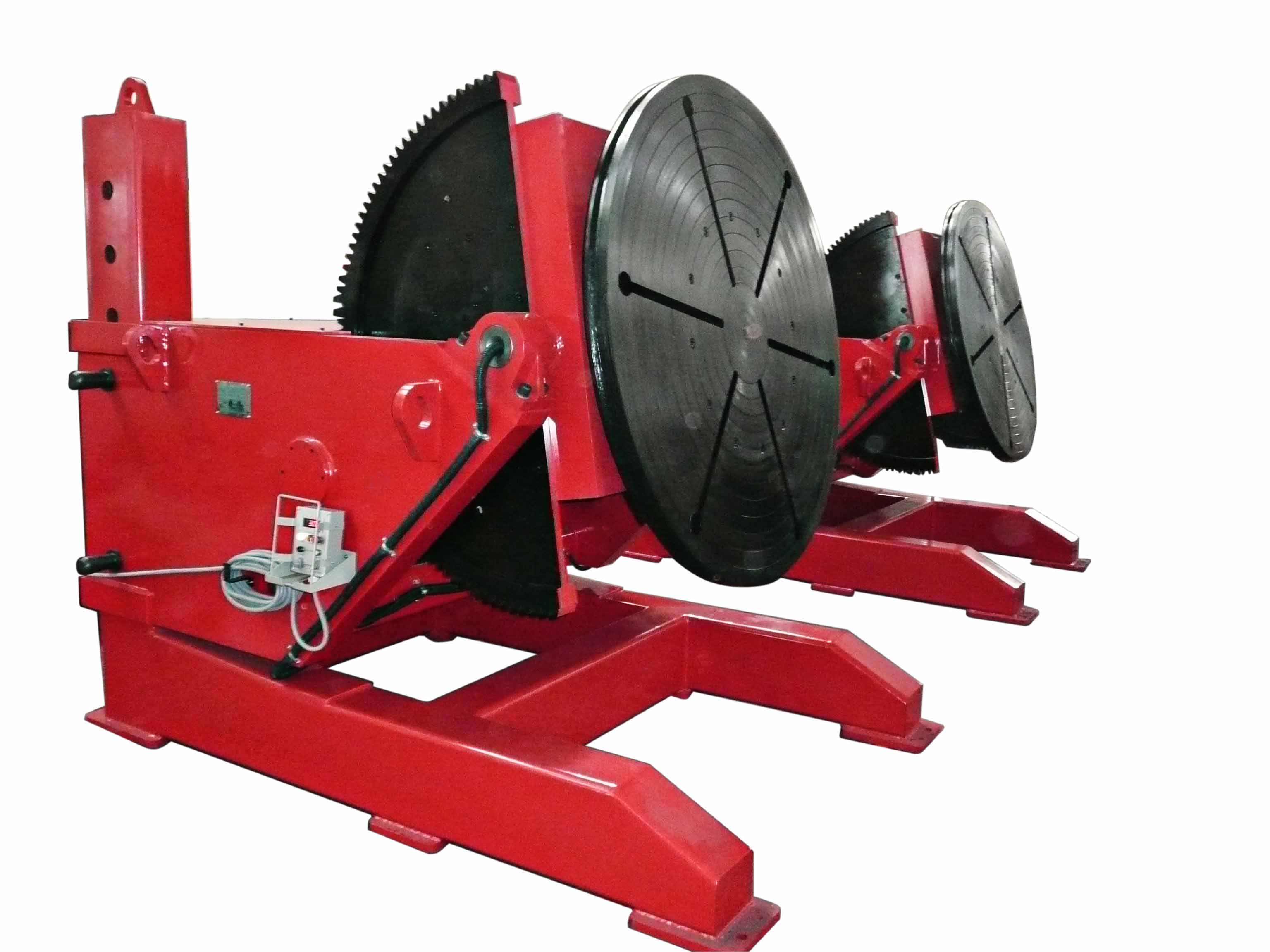

Technical requirements for welding positioners such as Light Duty Welding Postioner:

1, slewing drive

(1) The slewing drive should realize stepless speed regulation and can be reversed.

(2) In the range of the speed of rotation, the speed fluctuation does not exceed 5% when subjected to the maximum load.

2, tilt drive

(1) The tilt drive should be stable, not shaken under the maximum load, and the whole machine must not be overturned. If the maximum load Q exceeds 25kg, it should have a power drive function.

(2) A limit device shall be provided to control the tilt angle and an angle indicating sign.

(3) The tilting mechanism should have a self-locking function, which does not slide under the maximum load, and is safe and reliable.

3, other

(1) The control part of the positioner should be provided with a linkage interface for automatic welding.

(2) The positioner from Light Positioner Supplier should be equipped with conductive means to prevent the welding current from passing through the transmission parts such as bearings and gears. The resistance of the conductive device should not exceed 1mΩ, and its capacity should meet the requirements of the rated current of the welding.

(3) Electrical equipment should comply with the relevant provisions of GB/T 4064.

(4) The structure of the workbench should be convenient for loading the workpiece or installing the fixture, or negotiating with the user to determine its structural form.

(5) The relationship between the maximum load and the eccentricity and the center of gravity should be stated in the instruction manual of the positioner.
