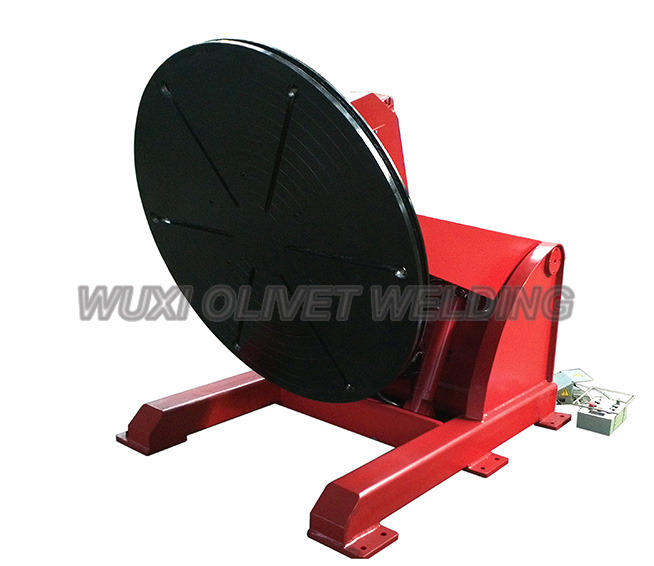

Hydraulic Welding Positioner - HYD Series

Hydraulic Welding Positioner - HYD Series

---

Stable Rotating Process

Olivet company has a comprehensive range of positioner for automatic welding. These very versatile handling tools enable welding to be carried out in the optimum positions to benefit the quality of the work. Olivet's positioners are with capacities ranging for 100 to 200,000kgs.

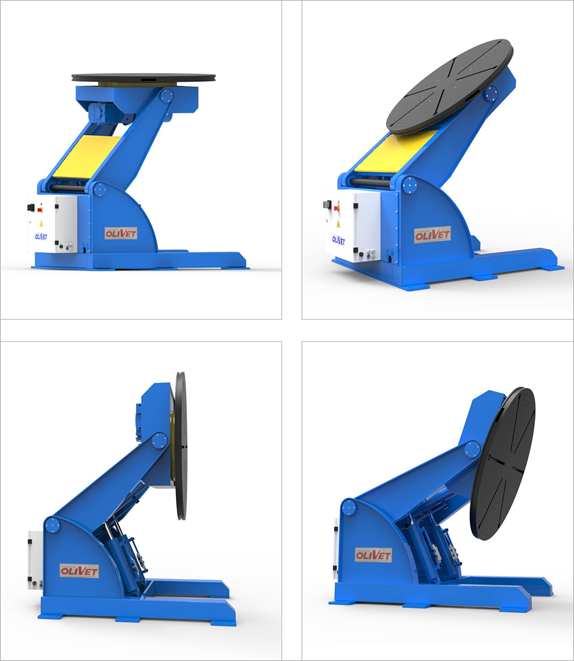

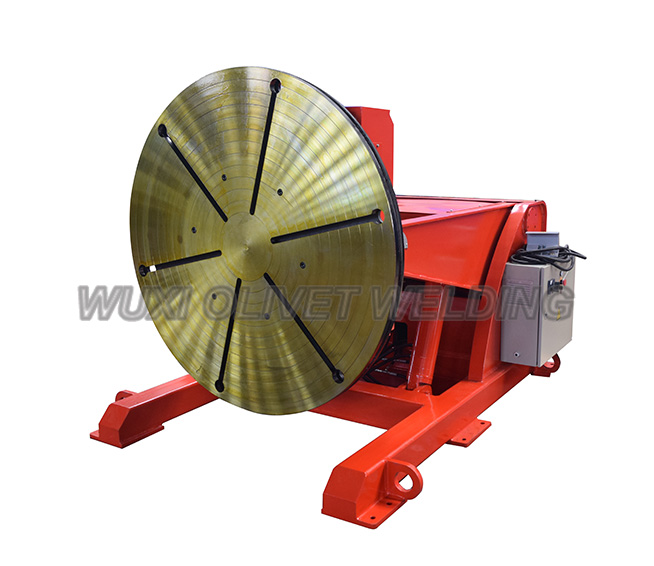

HYD Series positioners are the best solution to solve the problem of lifting, rotating and tilting demanding work pieces. Height, angle and speed are all adjustable. They have infinitely variable height control as a result of a hydraulic cylinder and remote control of all functions.

Scope of Delivery


A.  1 Main body

B. 1 Hydraulic system

C. 1 Electric control system

    1 control panel

    1 remote pendant

    1 foot switch

Main Technical Parameters

Model	Max. load	Gravity distance (G)	Eccentric distance (E)	Rotationg speed	Tilting range	Table diameter
HYD-06	600 kg	250 mm	200 mm	0.1-1 rpm	-45º-135º	900 mm
HYD-10	1000 kg	250 mm	200 mm	0.1-1 rpm	-45º-135º	900 mm
HYD-30	3000 kg	300 mm	200 mm	0.05 – 0.5 rpm	-45º-135º	1400 mm
HYD-50	5000 kg	300 mm	200 mm	0.05 – 0.5  rpm	-45º-120º	1500 mm
HYD-100	1000 kg	400mm	200mm	0.05 – 0.5  rpm	-45º-120º	2000 mm
HYD-200	2000 kg	600mm	250mm	0.05 – 0.5  rpm	-45º-120º	2000 mm

Note

Please note when you select your Positioner, the gravity center and eccentricity of your work-pc including chuck.

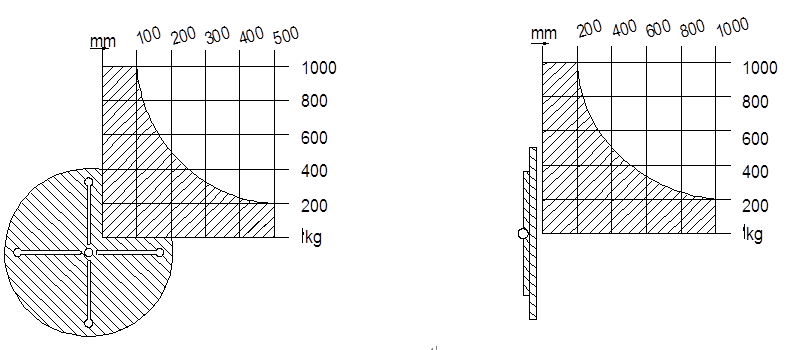

The below two figures show HBS10 positioner’s relationship of gravity center distance and Eccentricity distance with work-pc

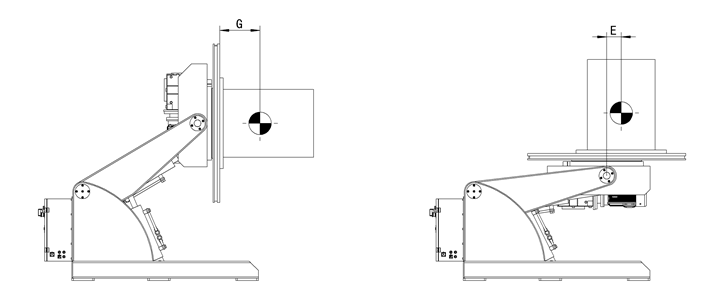

Gravit (G) and Eccentricity (E) Sketch

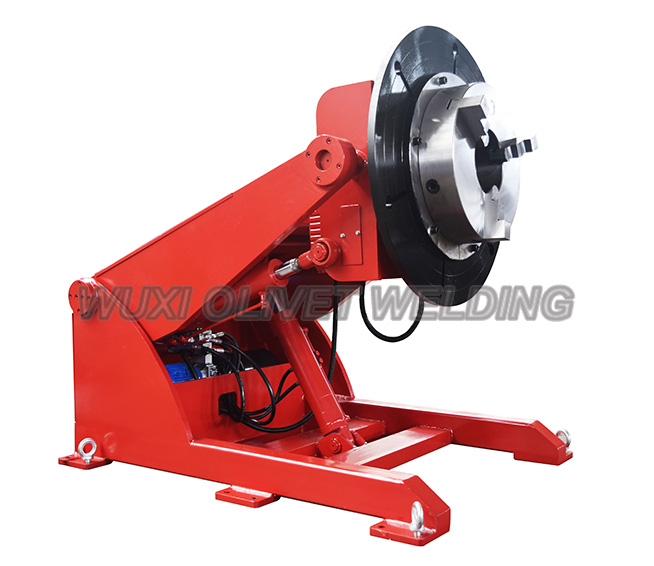

Optimal Positioner

Whether you want to weld by hand or automatically, the HYD series positioner allows for welding g in the optimum position, so that work hours are reduced with better quality.

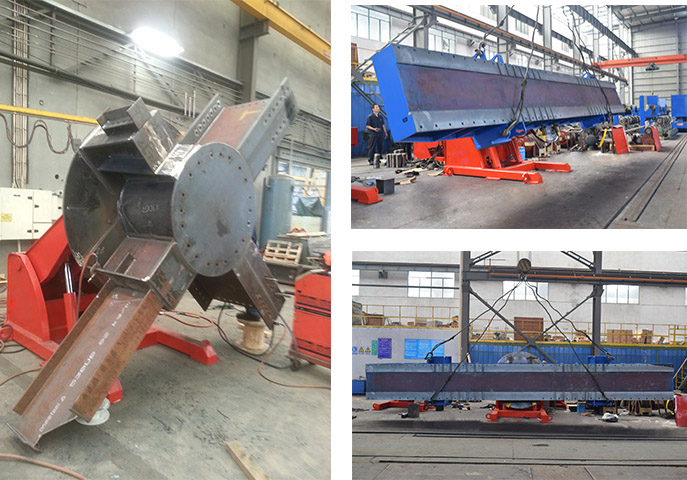

Application
