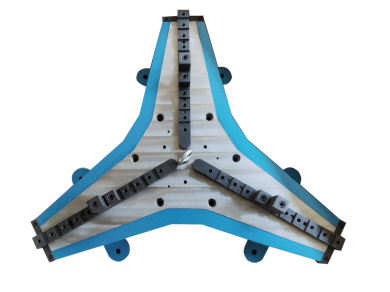

Welding Chuck -WPT series

Welding Chuck -WPT series

WPT series welding chuck is easy to operate, which is with features of a large clamp range and strong clamp face to meet the fixture requirements on big and heavy workpieces.

Features

WPT series welding chuck is easy to operate, which is with features of a large clamp range and strong clamp face to meet the fixture requirements on big and heavy workpieces.

China Positioner 1000 Kg

ModelWPT600WPT750WPT1000WPT1200WPT1600
Load Capacity1000KG2000KG2000KG2000KG3000KG
Clamping RangeØ 50-600mmØ50-750mmØ50-1000mmØ50-1200mmØ150-1600mm

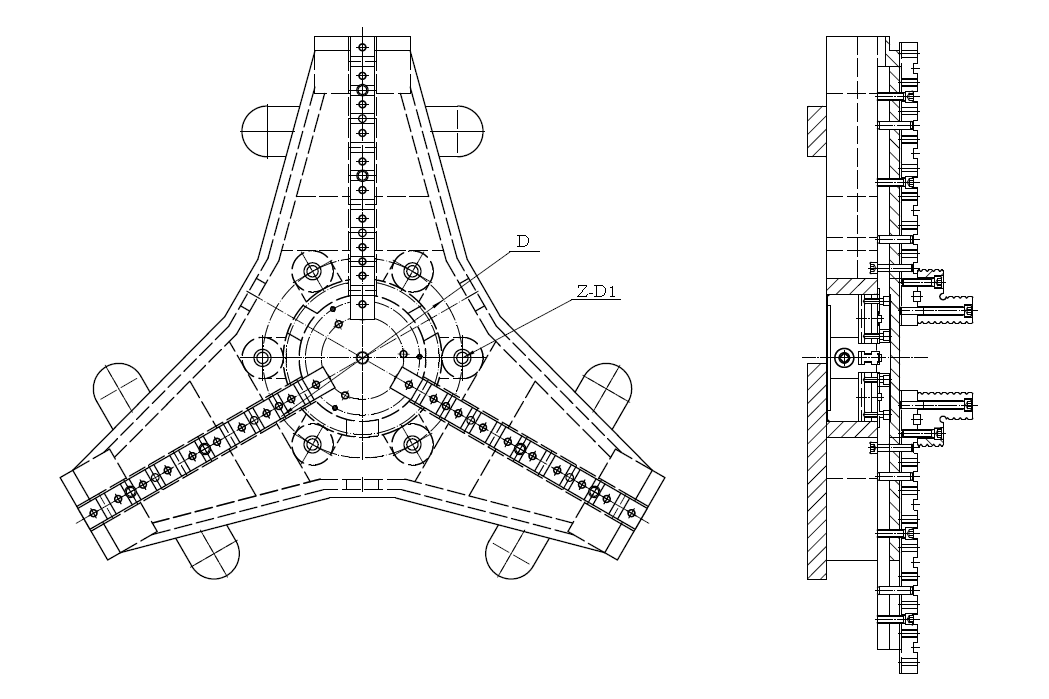

Installation Bolt (D1)M12M16M16M16M16
Bolt Q-ty (Z)66666
Installation Ring Dia. (D)Ø280mmØ350mmØ350mmØ350mmØ515mm
Weight100KG140KG180KG220KG300KG
