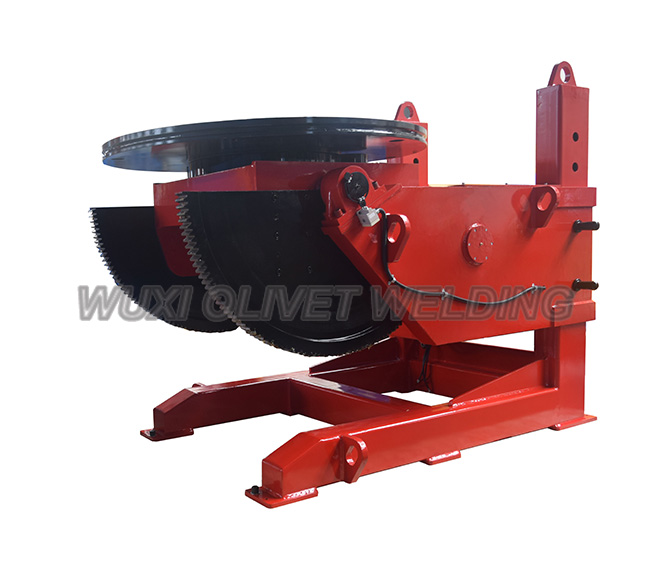

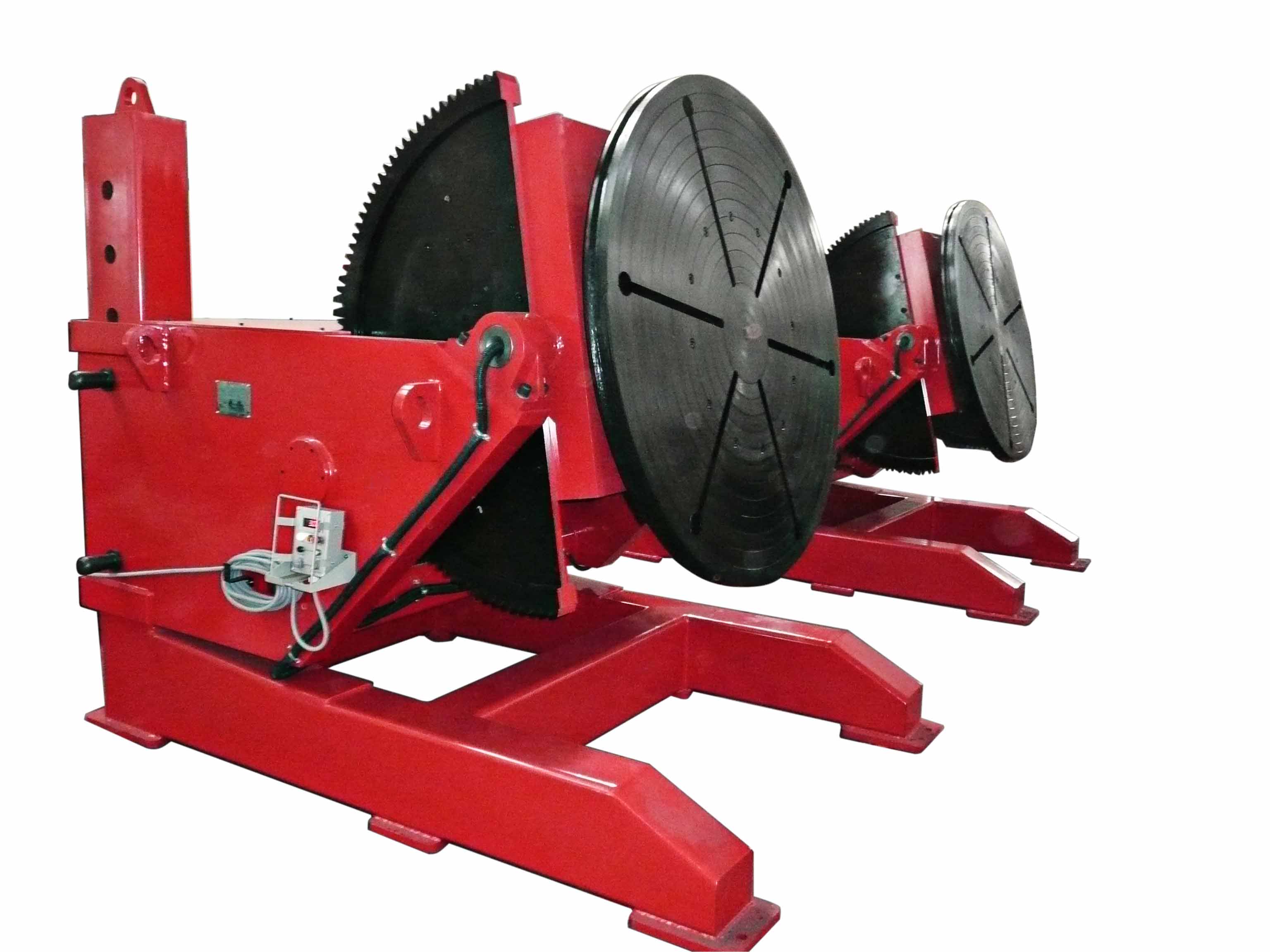

Elevating Positioner - HBS Series

HBS Series welding welding positioners are the best solution to the problem of elevating, rotating and tilting demanding work pieces. Angle and speed are all adjustable. They have infinitely variable height control as a result of a remote control of all functions.

Elevating Welding Positioner - HBS Series

Stable Rotating Process

Olivet has a comprehensive range of positioner for automatic welding. These very versatile handling tools enable welding to be carried out in the optimum positions to benefit the quality of the work. Olivet's welding positioners are with capacities ranging for 300 to 500,000kgs.

Scope of Delivery

A. 1 Main Body

B. 1 Electric control system

1 control panel

1 remote pendant

1 foot switch

Main Technical Parameters

Model	Max. load	Gravity dist.	Eccentricity dist.	Rotation speed	Tilting range	Table diameter
HBS-06	600 kg	200 mm	100 mm	0.1-1 rpm	0º-135º	1000 mm
HBS-10	1,000 kg	200 mm	100 mm	0.075-0.75 rpm	0º-135º	1000 mm
HBS-20	2,000 kg	200 mm	200 mm	0.08-0.8 rpm	0º-135º	1200 mm
HBS-30	3,000 kg	200 mm	200 mm	0.05 -0.5 rpm	0º-135º	1400 mm
HBS-50	5,000 kg	300 mm	200 mm	0.05 -0.5 rpm	0º-135º	1500 mm
HBS-100	10,000 kg	350mm	200mm	0.05 -0.5 rpm	0º-135º	1800 mm

Note

Please note when you select your Positioner, the gravity center and eccentricity of your work-pc including chuck.

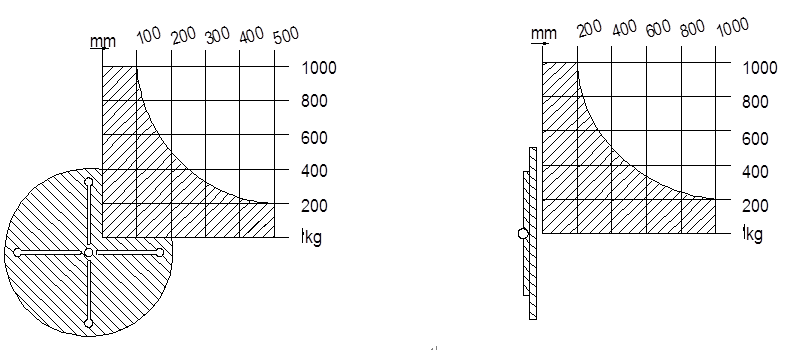

The below two figures show HBS10 positioner’s relationship of gravity center distance and Eccentricity distance with work-pc

Application

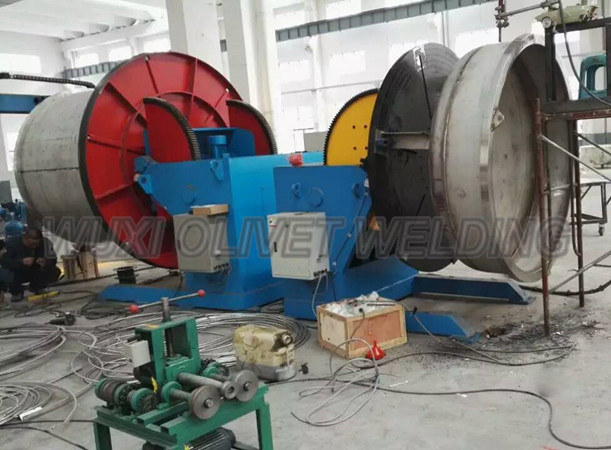

welding positioner working 1.jpg

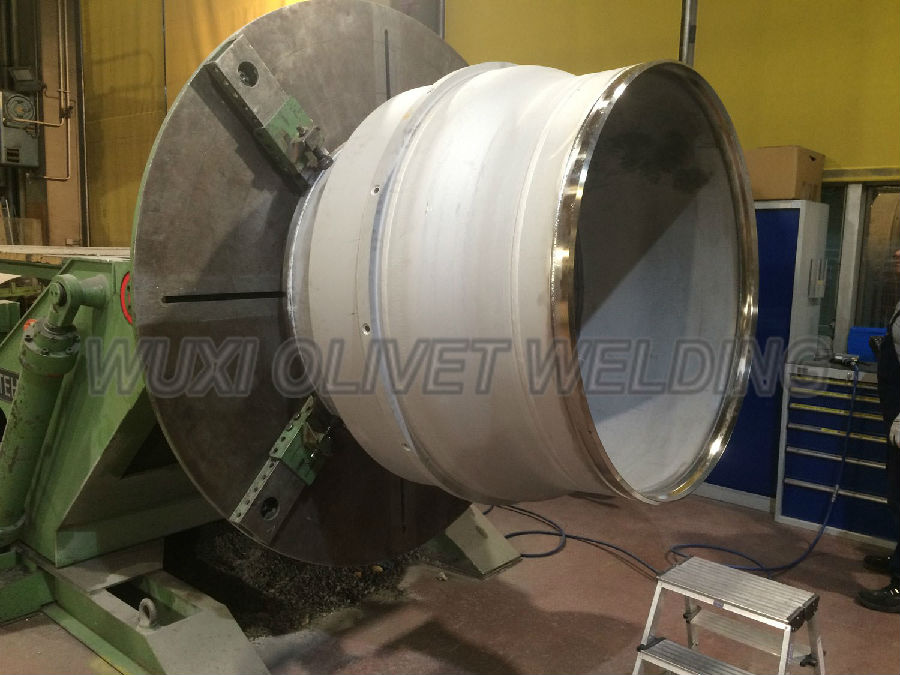

welding positioner working 2.jpg
