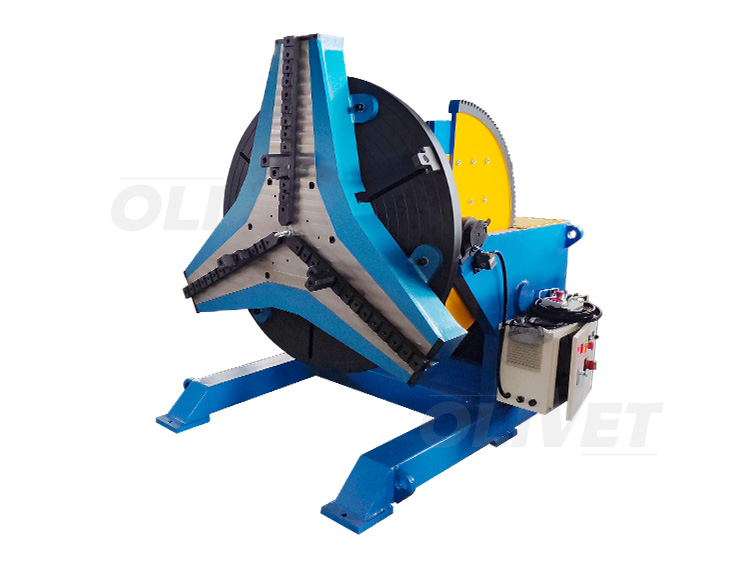

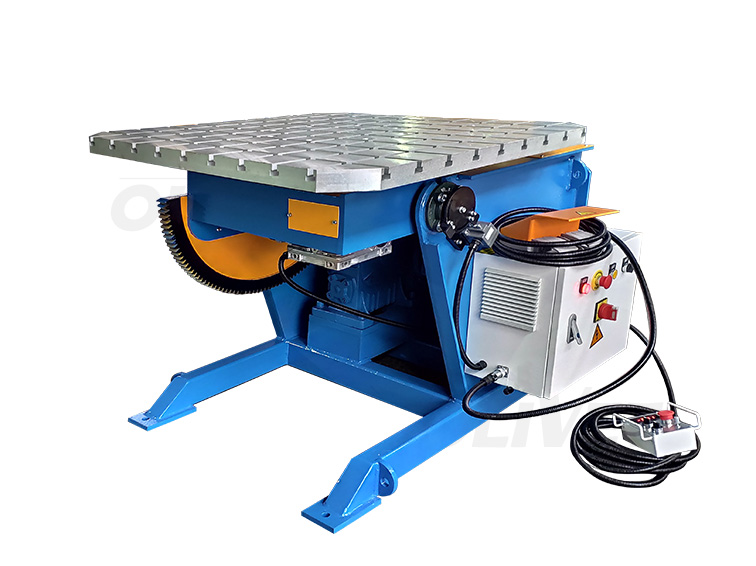

Single Base Positioner - HBJ Series

Single Base Positioner - HBJ Series

HBJ Series welding positioners are the best solution to the problem of rotating and tilting demanding work pieces. Angle and speed are all adjustable. They have infinitely variable height control as a result of a remote control of all functions.

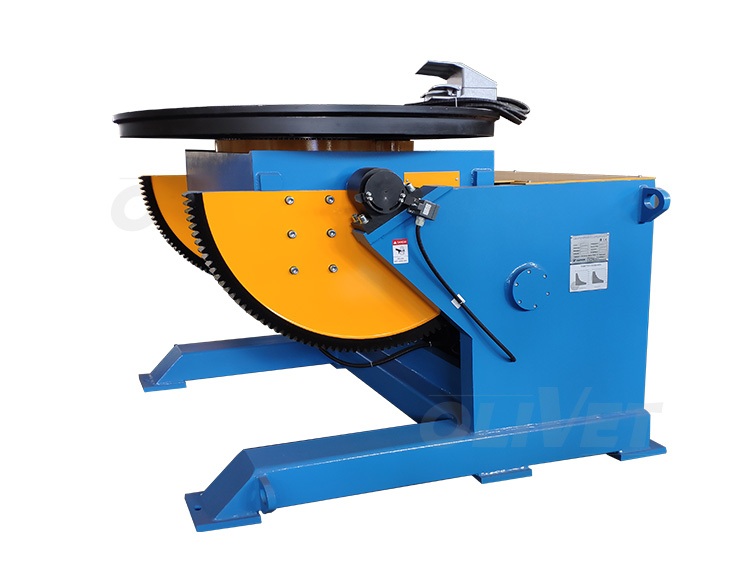

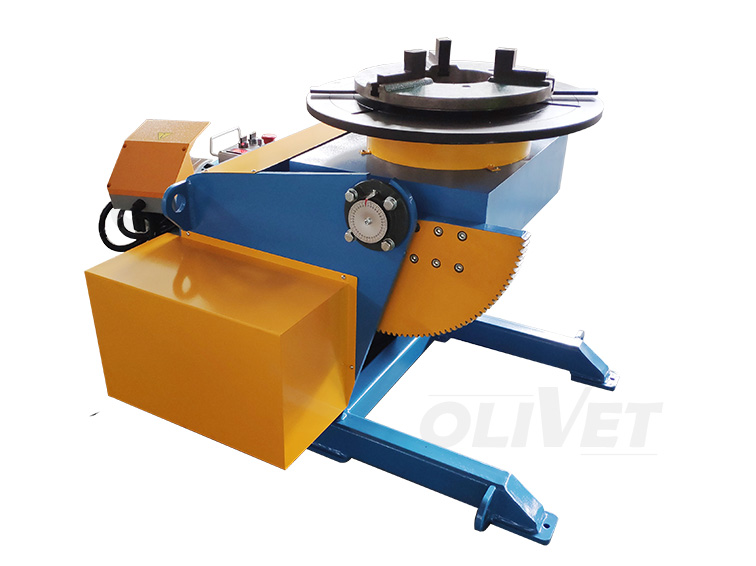

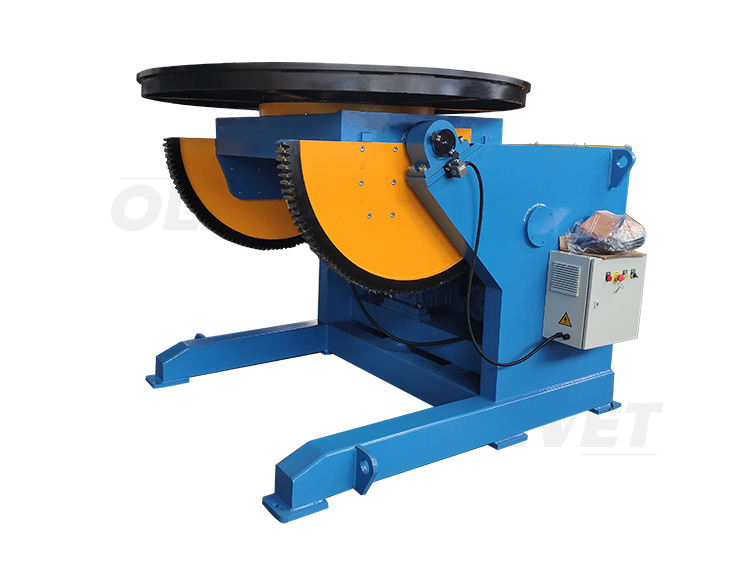

    Single Base Positioner - HBJ Series




    Stable Rotating Process


    Olivet has a comprehensive range of positioner for automatic welding. These very versatile handling tools enable welding to be carried out in the optimum positions to benefit the quality of the work. Olivet's heavy duty welding positioners are with capacities ranging for 300 to 500,000kgs.

    HBJ Series welding positioners are the best solution to the problem of rotating and tilting demanding work pieces. Angle and speed are all adjustable. They have infinitely variable height control as a result of a remote control of all functions.


    Scope of Delivery

    A.  1 Power and 1 Idler turning rolls

    B.  1 Electric control system

        1 control panel

        1 remote pendant

        1 foot switch

    Main Technical Parameters


Model

Max. load

Gravity Dist.

Eccentricity Dist.

Rotation speed

Tilting range

Table diameter

HBJ-03

300 kg

200 mm

150 mm

0.1-1 rpm

0°-90°

600 mm

HBJ-06

600 kg

200 mm

150 mm

0.1-1 rpm

0°-90°

1000 mm

HBJ-12

1,200 kg

250 mm

200 mm

0.075-0.75 rpm

0°-90°

1200 mm

HBJ-20

2,000 kg

300 mm

200 mm

0.05-0.5 rpm

0°-90°

1300 mm

HBJ-30

3,000 kg

300 mm

200 mm

0.05 - 0.5 rpm

0°-135°

1400 mm

HBJ-50

5,000 kg

300 mm

200 mm

0.05 - 0.5 rpm

0°-135°

1500 mm

HBJ-100

10,000 kg

400mm

200mm

0.05 - 0.5 rpm

0°-135°

2000 mm

HBJ-200

20,000 kg

600mm

200mm

0.04 - 0.4 rpm

-45°-90°

2500 mm

Note

Please note when you select your Positioner, the gravity center and eccentricity of your work-pc including chuck.

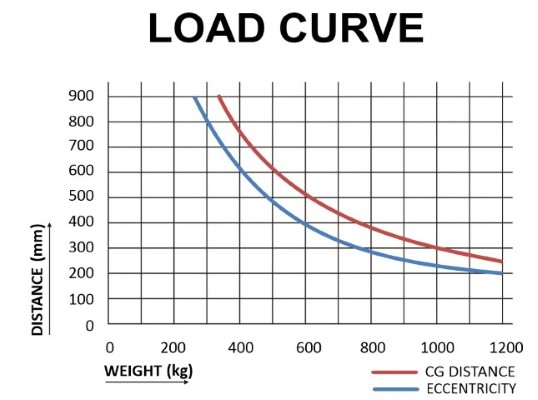

The below two figures show HBJ12 positioner’s relationship of gravity center distance and Eccentricity distance with work-pc

Single Base Positioner - HBJ Series

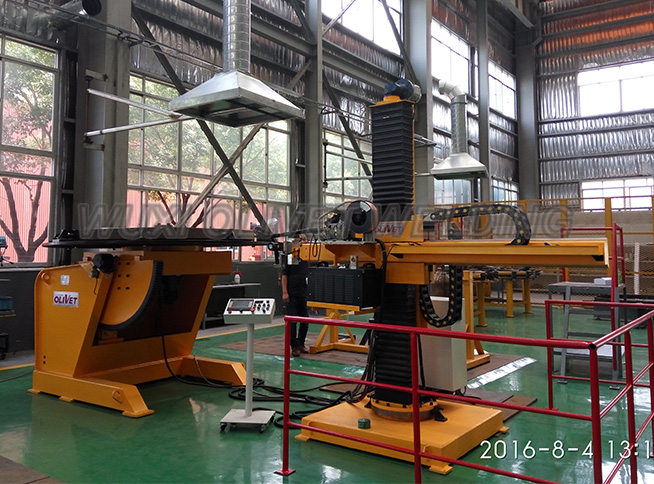

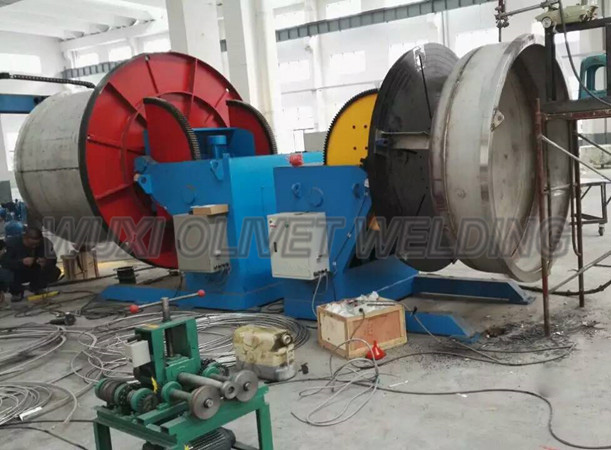

Application
