H-Beam CNC Flame/Straight Cutting Machine

1. Performance

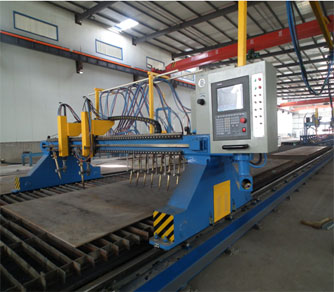

cnc cutting machine.jpg

CNC.CG SERIES OF CUTTING MACHINE is a high efficiency and high performance equipment, which uses gantry type, single drive or double drive and combines CNC control, precision mechanism and oxygen cutting. This machine uses advanced CNC system from abroad, such as Spanish FAGOR and American Hypertherm. Its excellent cutting parameters, reliable and stable features ensure the perfect cutting effect. CNC flame torch has auto height regulator and auto ignition functions, which is convenient for use.

2. Main technical parameters

Model	*CNCCG4M**	*CNCCG5M**	*CNCCG6M**
Rials span, mm	4000	5000	6000
Effective cutting max width, mm	3200	4200	5200
Machine total width, mm	4800	5800	6800
Rail length, mm	14000 + n*2000
Drive mode	Single	Double	Double
CNC cutting torch	2	2	2
Straight cutting torch	9	9	9
Cutting depth, mm	6-100 (can extend to 400 if use large flow cutting torch)
Material of plate	Carbon , stainless or other material
Cutting gas	Oxygen, propane,acetylene, plasma
Cutting speed	50-4000	50-6000	50-6000

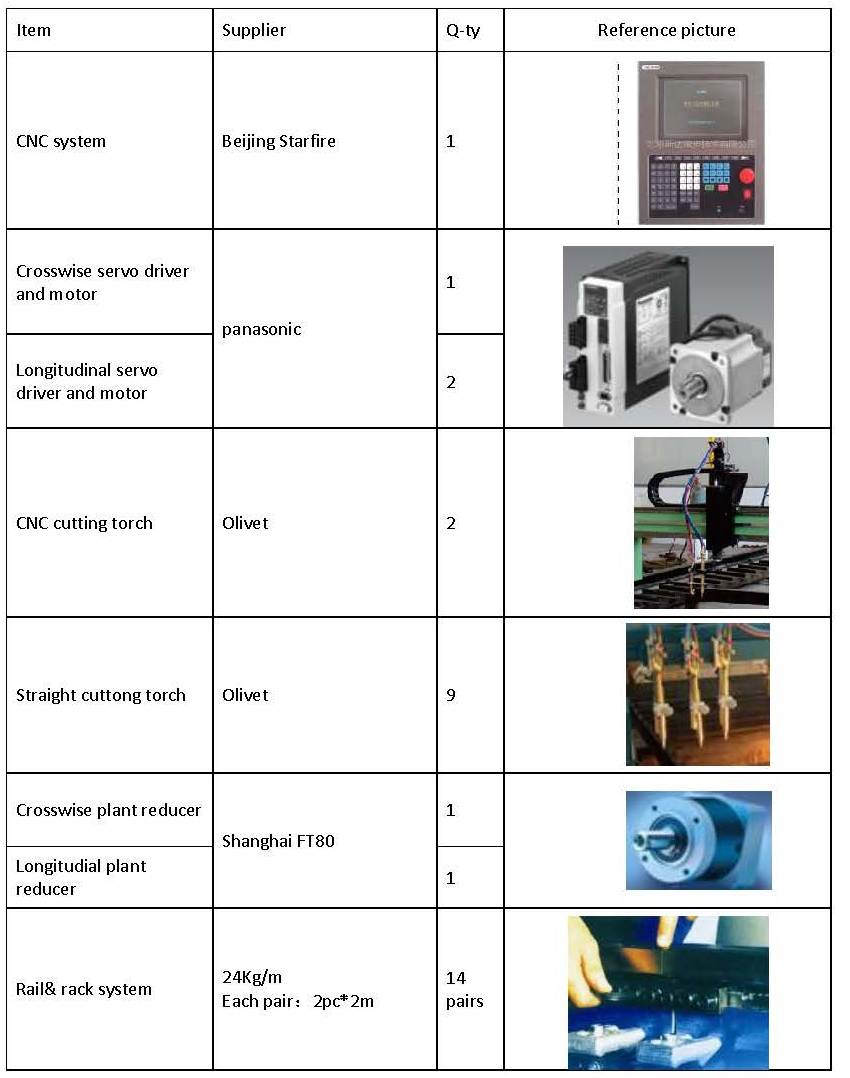

3. Configuration
