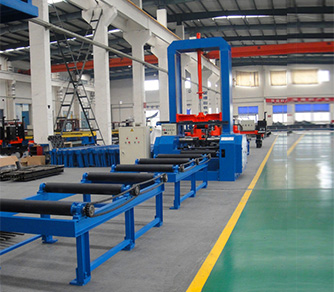

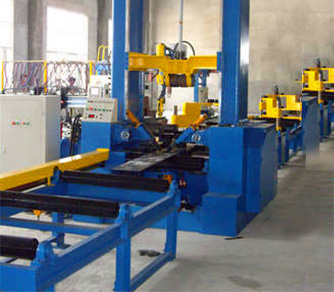

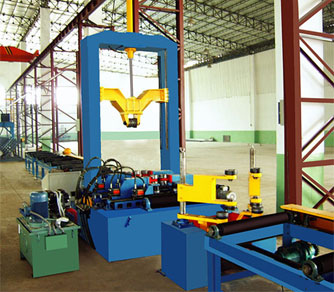

H-Beam Assembling Machine

H-Beam Assembling Machine

Process including clamping and alignment of web and flange,automatic tack-welding is controlled with PLC,Mani machine is driver by A.C.inverter, stable and reliable.Upper press-beam is guided thru left and right four rails.ensuring steady clamping of long time use.

Applied web height 200-1500mm
Applied web thickness 6-50mm
Applied flange width 200-800mm
Applied flange thickness 6-60mm
Applied beam length 4000-15000mm
Assemble speed 0.5-6m/min
Input conveyor 2600mm*4
Output conveyor 2600mm*4
Total power 18.7KW(+CO2 welders power 2*12.8KW)
Power supply 3-p AC380V ,50HZ
