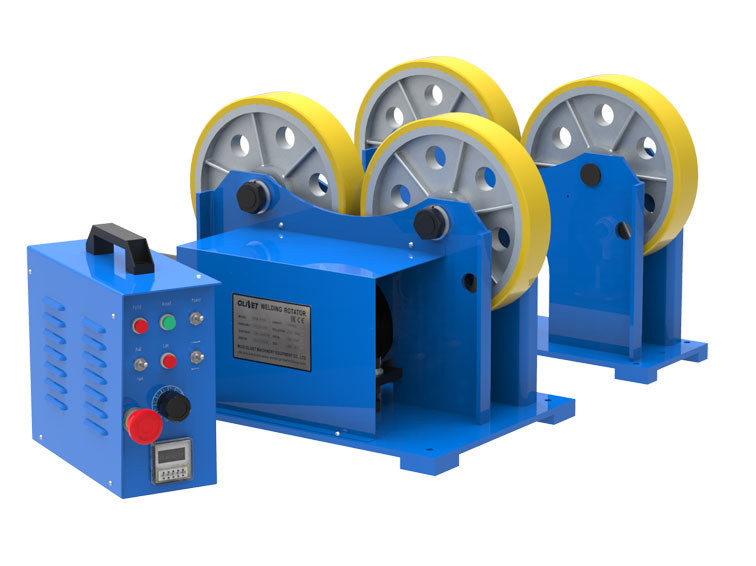

WELDING ROTATOR – HGK Series

WELDING ROTATOR – HGK Series

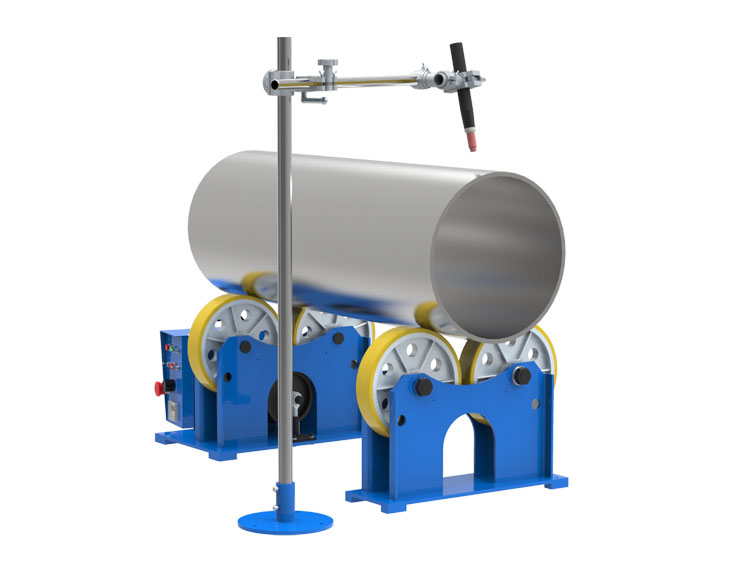

Advantages of the Modular System: Specifically designed to rotate pipe for circular welding, cutting, and painting jobs.

Advantages of the Modular System

Specifically designed to rotate pipe for circular welding, cutting, and painting jobs.

Features

  • Device for the turning and positioning of small tanks and cylindrical workpieces.

  • Equipped with high performance PU-coated metal roller to provide stable running.

  • DC infinitely variable speed control system.

  • Switch for cw/ ccw rotation, foot switch for start/ stop functions.

  • High frequency protection.

  • Timer relay provide automatic welding requests

Scope of Delivery

  • 1 Power and 1 Idler turning rolls

  • 1 Electric control system

  • Foot Switch

Main Technical Parameters

Model HGK-1000S
 Max Load (kg) 1000kg

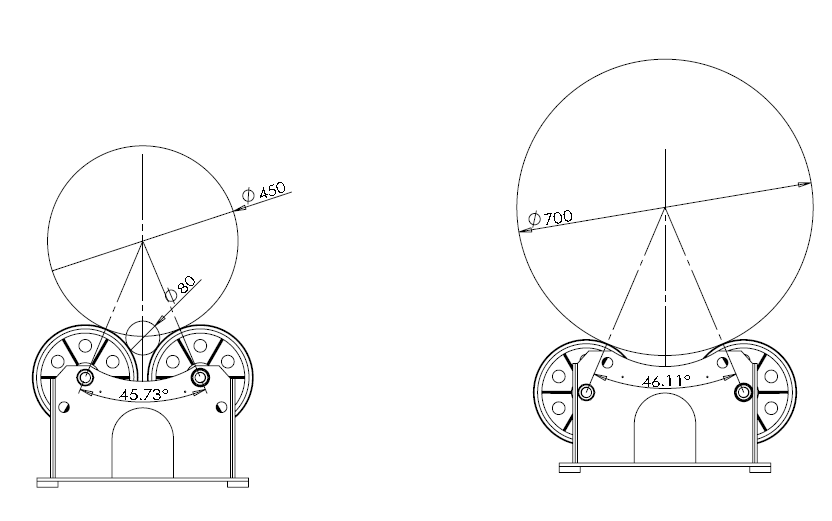

 Pipe Diameter Range(mm) Ø80-Ø700mm
 Rotation Speed (mm/min) 80-1600mm/min
 Rotation Power (w) DC 120w
 Roller Size (mm) Ø250x50mm
 Roller Material  Steel coated with PU
 Machine Size (mm)  660x320x390mm (Drive)
 500x160x390mm (Idler)
