200T Capacity Adjustable Turning Rolls

OLIVTE provides precise rotation of cylindrical weldments for positioning in heavy manufacturing. This increases throughput, improves safety, reduces maintenance costs and extends service life.

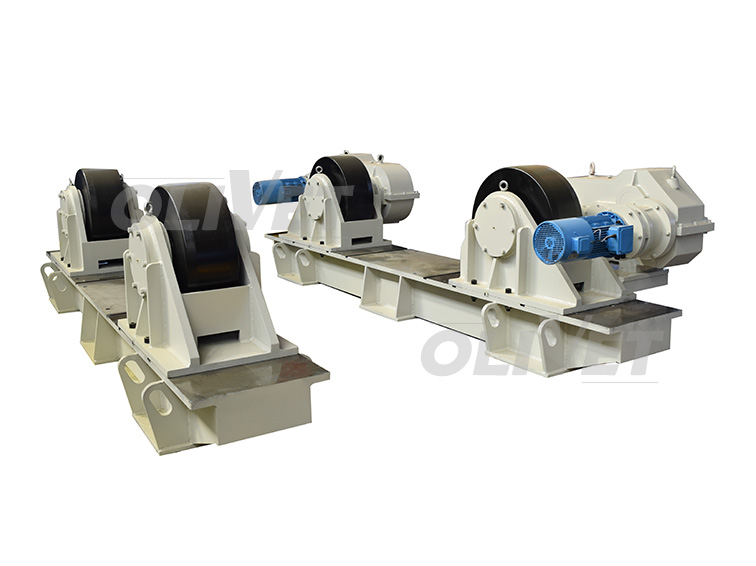

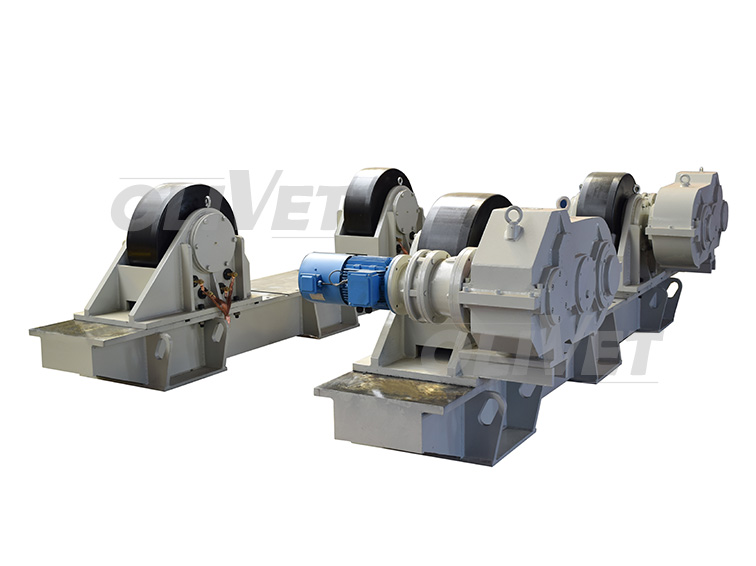

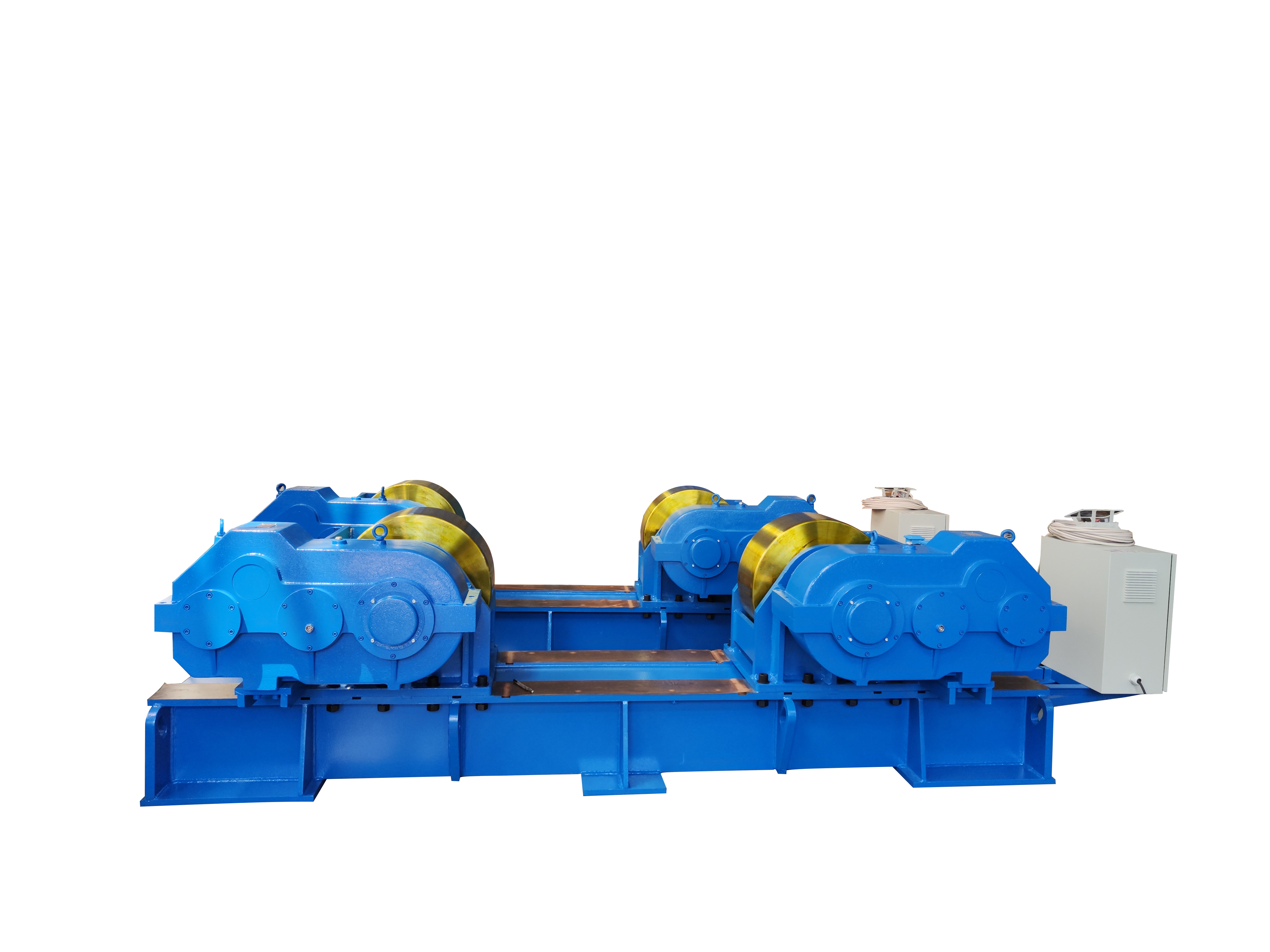

Adjustable Turning Rolls - HGK Series 2T-200T Capacity Rotating Rolls

Our turning rolls make it easy for your welders to rotate large pipes and weld in a flat position. They enable welders to achieve better welds and increase throughput while maximizing the safety of everyone in the shop.

Stable Rotating Process

The HGK series adjustable turning rolls has two synchronously operating drive units which arrange for a continuous rotation with frequency convension stepless speed controlling. A hand held, low voltage control pendant on a 10-metre cable provides the operator with full control of the rotator including a potentiometer for varying the speed, forward/reverse and stop.

Features

A. For turning and positioning workpieces in the sections of mechanical engineering, container building, plant construction and pipeline construction.

B. Welded, robust steel construction.

C. Adjustable rotating speed.

D. Large range center distance to match diffrent diameter of workpiecec

E. Compact and robust design, easy to operate.

Scope of Delivery

A. 1 Power and 1 Idler turning rolls

B. 1 Electric control system

1 control panel

1 remote pendant

Main Technical Parameters

Model	Max. load	Workpieces dia.	Roller material	Roller dia.	Roller width	Rolling speed	Roller motor
HGK-2	2,000kg	Ø150-Ø2,000mm	Steel coated with PU	Ø200mm	80mm	6-60m/h	2x0.18kw
HGK-5	5,000kg	Ø250-Ø2,800mm	Steel coated with PU	Ø250mm	120mm	6-60m/h	2x0.37kw
HGK-10	10,000kg	?300-?3,200mm	Steel coated with PU	Ø300mm	130mm	6-60m/h	2x0.55kw
HGK-20	20,000kg	Ø500-Ø4,500mm	Steel coated with PU	Ø350mm	180mm	6-60m/h	2x1.1kw
HGK-40	40,000kg	Ø500-Ø5,000mm	Steel coated with PU	Ø400mm	220mm	6-60m/h	2x1.5kw
HGK-60	60,000kg	?500-?5,000mm	Steel coated with PU	Ø450mm	2x180mm	6-60m/h	2x2.2kw
HGK-80	80,000kg	?800-?6,000mm	Steel coated with PU	Ø450mm	2x180mm	6-60m/h	2x3kw
HGK-100	100,000kg	Ø800-Ø6,000mm	Steel coated with PU	Ø500mm	2x200mm	6-60m/h	2x3kw
HGK-160	160,000kg	Ø800-Ø6,000mm	Forging Steel 42CrMo	Ø550mm	200mm	6-60m/h	2x4kw
HGK-200	200,000kg	Ø800-Ø6,500mm	Forging Steel 42CrMo	Ø650mm	250mm	6-60m/h	2x4kw
HGK-250	250,000kg	Ø800-Ø6,500mm	Forging Steel 42CrMo	Ø650mm	250mm	6-60m/h	2x5.5kw
HGK-300	300,000kg	Ø800-Ø6,500mm	Forging Steel 42CrMo	Ø700mm	300mm	6-60m/h	2x5.5kw
HGK-500	500,000kg	Ø1,000-Ø8,000mm	Forging Steel 42CrMo	Ø750mm	350mm	6-60m/h	2x7.5kw
HGK-800	800,000kg	Ø1,000-?8,000mm	Forging Steel 42CrMo	Ø850mm	400mm	6-60m/h	2x11kw
HGK-1000	1,000,00kg	Ø1,000-Ø8,000mm	Forging Steel 42CrMo	Ø900mm	500mm	6-60m/h	2x15kw

Application

Our wide selection of turning roll styles and capacities are designed for specific applications, including pipe winding, vessel fabrication, tank car and tank fabrication.

Please communicate with us!

Our experienced engineering team will evaluate specific material properties, load capacities and manufacturing processes and recommend a positioning solution that is right for your application. While our turning rolls are most often used as standard products, we often custom engineer and integrate them with welding solutions for unique applications that require modified functionality.
