Lead Screw Turning Rolls - HGKS Series

Lead Screw Turning Rolls - HGKS Series

The HGKS series lead screw adjustable turning rolls has two synchronously operating drive units which arrange for a continuous rotation with VFD speed controlling. Center distance is adjustable by lead screw easy to meet different diameters of vessels.

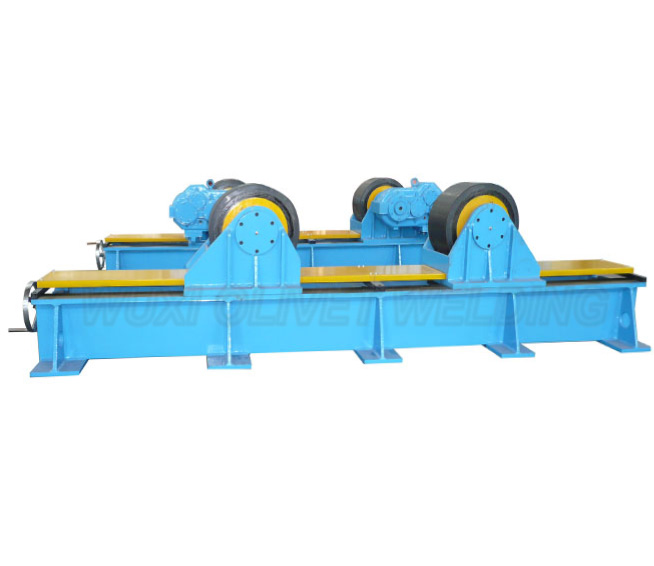

    Lead Screw Adjustable Turning Rolls - HGKS Series




    Stable Rotating Process

    The HGKS series lead screw adjustable turning rolls has two synchronously operating drive units which arrange for a continuous rotation with VFD speed controlling. Center distance is adjustable by lead screw easy to meet different diameters of vessels.  A hand held, low voltage control pendant on a 10-metre cable provides the operator with full control of the rotator including a potentiometer for varying the speed, forward/reverse and stop.

    Features

    A.  For turning and positioning workpieces in the sections of mechanical engineering, container building, plant construction and pipeline construction.

  • B.  Welded, robust steel construction.

  • C.  Adjustable rotating speed.

    D.  Large range center distance to match diffrent diameter of workpiecec

    E.  Compact and robust design, easy to operate.

    Scope of Delivery

    A.  1 Power and 1 Idler turning rolls

    B.  1 Electric control system

        1 control panel

        1 remote pendant

    Main Technical Parameters

Model

Max. load

Workpieces dia.

Roller material

Roller dia.

Roller width

Rolling speed

Roller motor

HGKS-2

2,000kg

Ø150-Ø2,000mm

Steel coated with PU

Ø200mm

80mm

6-60m/h

2x0.18kw

HGKS-5

5,000kg

Ø250-Ø2,800mm

Steel coated with PU

Ø250mm

120mm

6-60m/h

2x0.37kw

HGKS-10

10,000kg

Ø300-Ø3,200mm

Steel coated with PU

Ø300mm

130mm

6-60m/h

2x0.55kw

HGKS-20

20,000kg

Ø500-Ø4,500mm

Steel coated with PU

Ø350mm

180mm

6-60m/h

2x1.1kw

HGKS-40

40,000kg

Ø500-Ø5,000mm

Steel coated with PU

Ø400mm

220mm

6-60m/h

2x1.5kw

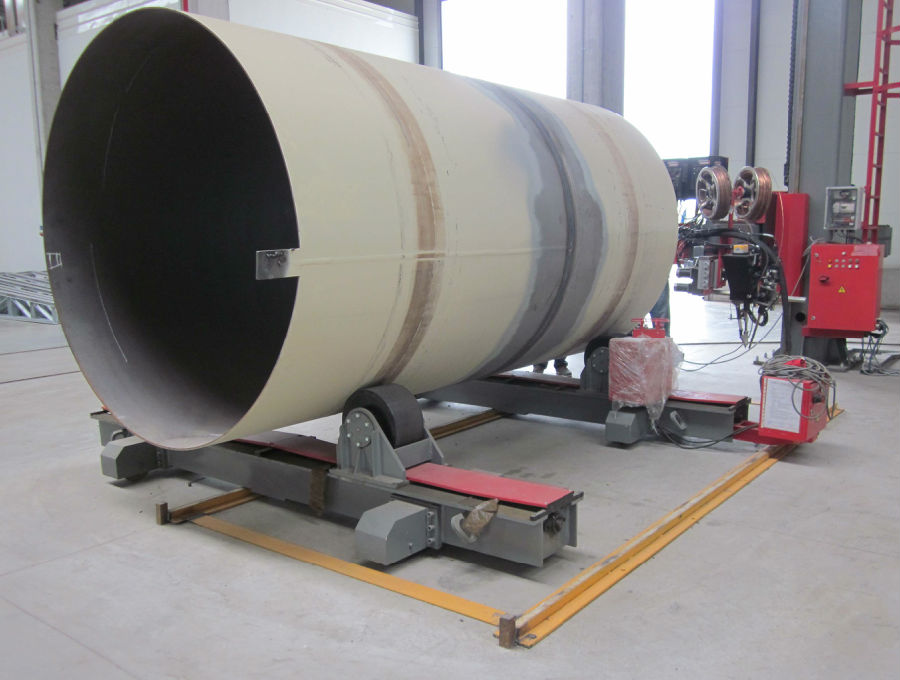

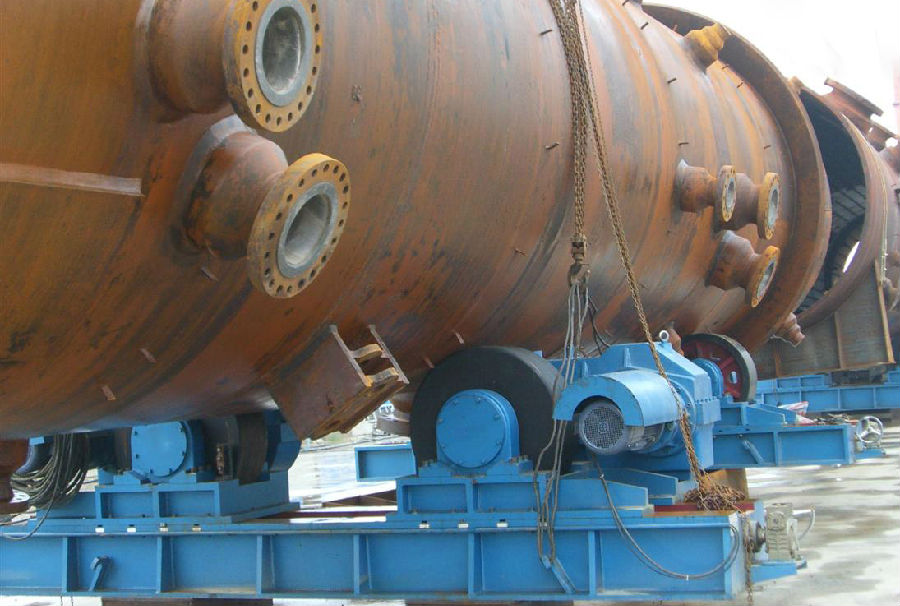

Application
