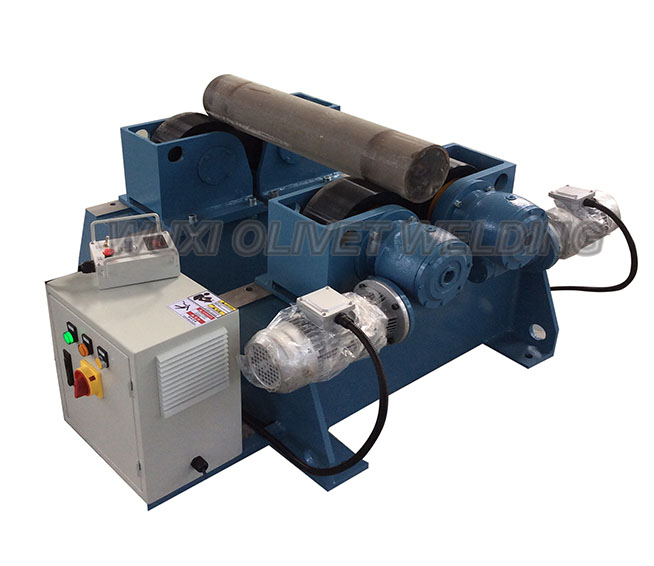

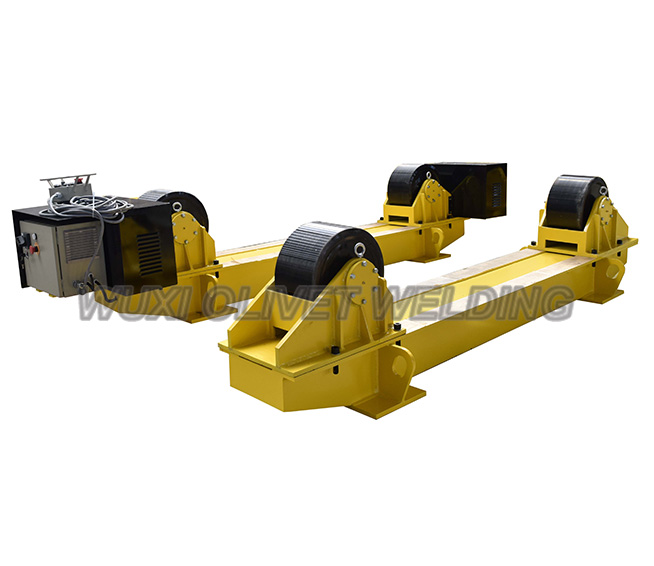

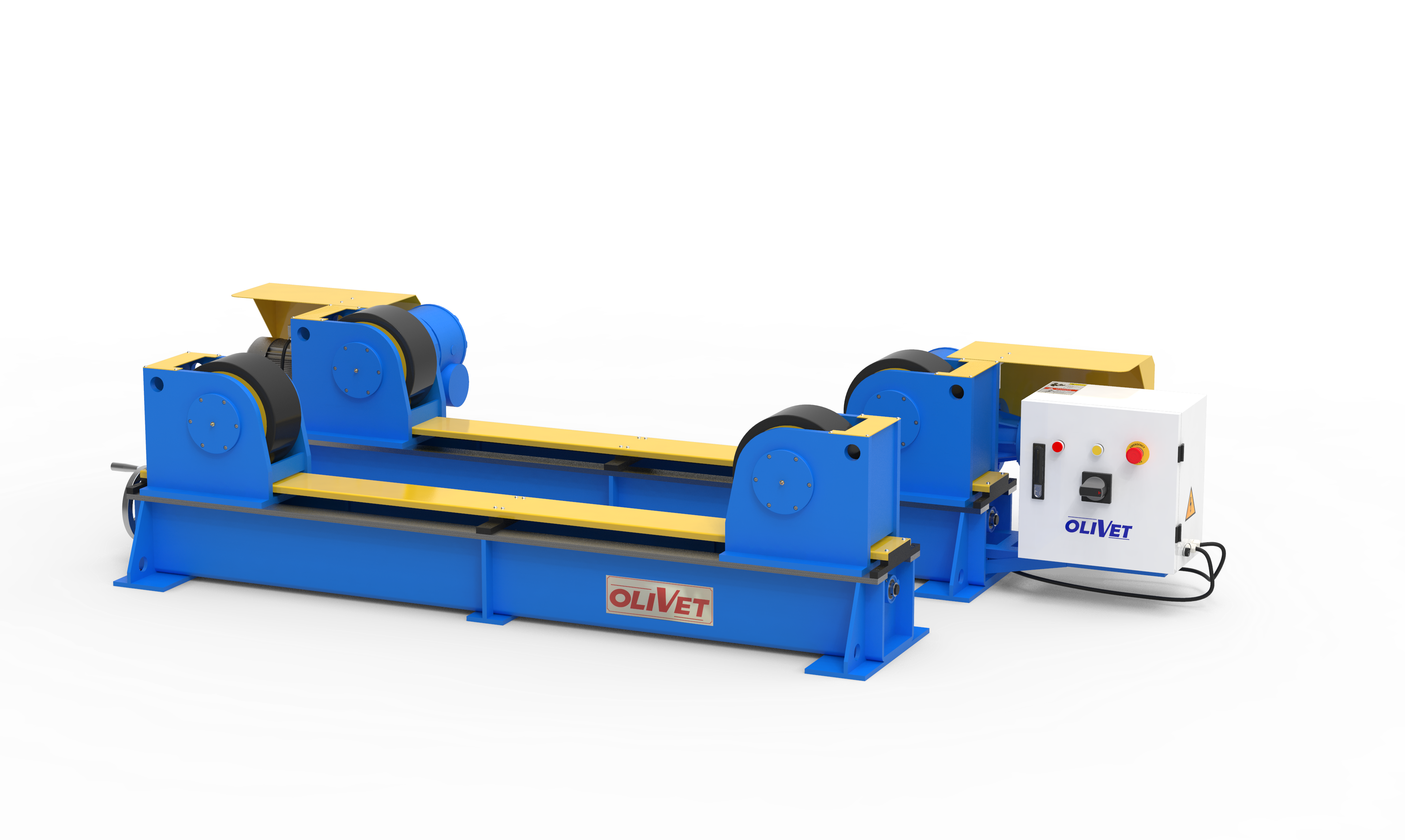

Adjustable Welding Turning Rolls - HGK Series

Adjustable Welding Turning Rolls - HGK Series

The HGK series adjustable turning rolls has two synchronously operating drive units which arrange for a continuous rotation with frequency convension stepless speed controlling. Welding turning rolls are designed to support and rotate cylindrical workpieces during welding, polishing, or other operations.

    Adjustable Welding Turning Rolls - HGK Series





    The HGK series adjustable turning rolls has two synchronously operating drive units which arrange for a continuous rotation with frequency convension stepless speed controlling.  A hand held, low voltage control pendant on a 10-metre cable provides the operator with full control of the rotator including a potentiometer for varying the speed, forward/reverse and stop.

    HGK Series Adjustable Welding Turning Rolls Features

    A.  For turning and positioning workpieces in the sections of mechanical engineering, container building, plant construction and pipeline construction.

  • B.  Welded, robust steel construction.

  • C.  Adjustable rotating speed.

    D.  Large range center distance to match diffrent diameter of workpiecec

    E.  Compact and robust design, easy to operate.

    Scope of Delivery

    A.  1 Power and 1 Idler turning rolls

    B.  1 Electric control system

        1 control panel

        1 remote pendant

    Main Technical Parameters

Model

Max. load

Workpieces dia.

Roller material

Roller dia.

Roller width

Rolling speed

Roller motor

HGK-2

2,000kg

Ø150-Ø2,000mm

Steel coated with PU

Ø200mm

80mm

6-60m/h

2x0.18kw

HGK-5

5,000kg

Ø250-Ø2,800mm

Steel coated with PU

Ø250mm

120mm

6-60m/h

2x0.37kw

HGK-10

10,000kg

Ø300-Ø3,200mm

Steel coated with PU

Ø300mm

130mm

6-60m/h

2x0.55kw

HGK-20

20,000kg

Ø500-Ø4,500mm

Steel coated with PU

Ø350mm

180mm

6-60m/h

2x1.1kw

HGK-30

30,000kg

Ø500-Ø4,500mm

Steel coated with PU

Ø350mm

200mm

6-60m/h

2x1.5kw

HGK-40

40,000kg

Ø500-Ø5,000mm

Steel coated with PU

Ø400mm

220mm

6-60m/h

2x1.5kw

HGK-60

60,000kg

Ø500-Ø5,000mm

Steel coated with PU

?450mm

2x180mm

6-60m/h

2x2.2kw

HGK-80

80,000kg

Ø800-?6,000mm

Steel coated with PU

Ø450mm

2x180mm

6-60m/h

2x3kw

HGK-100

100,000kg

Ø800-?6,000mm

Steel coated with PU

Ø500mm

2x200mm

6-60m/h

2x3kw

HGK-160

160,000kg

Ø800-Ø6,000mm

Forging Steel 42CrMo

Ø550mm

200mm

6-60m/h

2x4kw

HGK-200

200,000kg

?800-?6,500mm

Forging Steel 42CrMo

Ø650mm

250mm

6-60m/h

2x4kw

HGK-250

250,000kg

Ø800-Ø6,500mm

Forging Steel 42CrMo

Ø650mm

250mm

6-60m/h

2x5.5kw

HGK-300

300,000kg

Ø800-Ø6,500mm

Forging Steel 42CrMo

Ø700mm

300mm

6-60m/h

2x5.5kw

HGK-500

500,000kg

Ø1,000-Ø8,000mm

Forging Steel 42CrMo

Ø750mm

350mm

6-60m/h

2x7.5kw

HGK-800

800,000kg

Ø1,000-Ø8,000mm

Forging Steel 42CrMo

Ø850mm

400mm

6-60m/h

2x11kw

HGK-1000

1,000,00kg

Ø1,000-Ø8,000mm

Forging Steel 42CrMo

Ø900mm

500mm

6-60m/h

2x15kw


Application




Why buy this kind of welding turning rolls?

Improved productivity: Welding turning rolls can help improve productivity by reducing the time and effort required to manually rotate workpieces during welding or other operations.

Better quality welds: Welding turning rolls ensure a consistent rotation speed, which can help to produce high-quality, uniform welds.

Increased safety: By automating the rotation of workpieces, welding turning rolls can help reduce the risk of accidents and injuries associated with manual handling.

Versatile: Welding turning rolls can be used for a wide range of cylindrical workpieces, including pipes, tanks, and pressure vessels.

Cost-effective: Welding turning rolls are a cost-effective solution for rotating workpieces, compared to more complex and expensive equipment such as robotic systems.
