Stainless steel tank fit-up plasma welding center

Stainless steel tank fit-up plasma welding center

The plasma and tig welding center is developed for a high qulity welding requests on longitudinal seam and circular seam of stainless steel. The welding center is widely used for food industry, pharmaceutical indusry and other stainless steel shell production industry.

The plasma and tig welding center is developed for a high qulity welding requests on longitudinal seam and circular seam of stainless steel.  The welding center is widely used for food industry,  pharmaceutical indusry and other stainless steel shell production industry.

Double avc (arc length auto control system) and plc programe system equipped to ensure the welding center is advanced and stability to finish shells with good welding qulity.

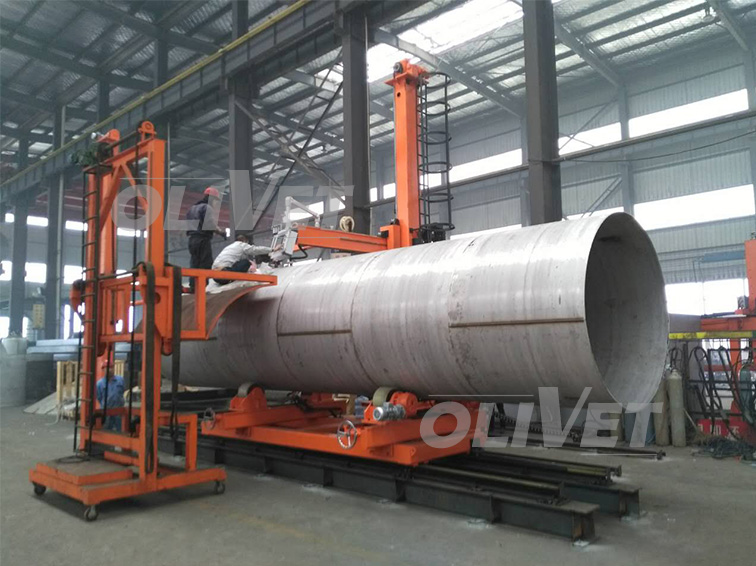

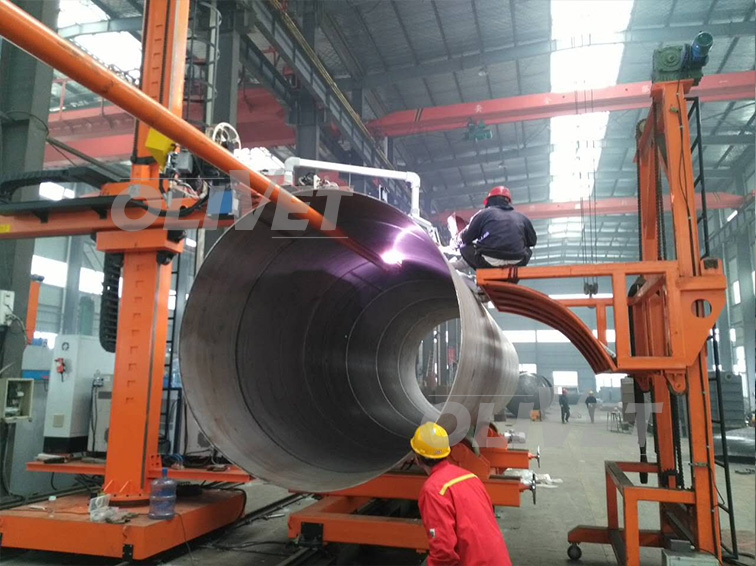

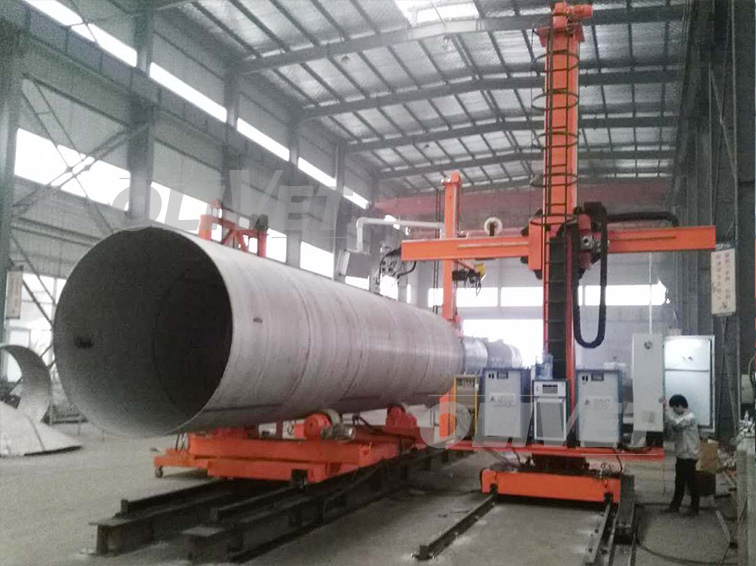

The Plasma welding center inculds two staions, single section longitudinal seam welding and many sections fit-up circular seam welding.

The Plasma welding center can finish the longitudinal and cirular seam welding of stainless steel  at one pass under thickness of 3mm to 10mm without beveling processing.

The plama welding center can greatly improve the welding speed and save much labor cost.


1. Welding system

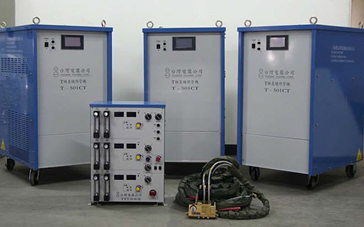

PLA-WEL501D    plasma welding source (chopped mode)

Brand

Taiwan tpc

Impulse frequencey

1-500hz

Max welding currant

500a

Max duty cycle

100%

Current consumption at 100% duty cycle

33.8a

Power consumption at 100% duty cycle

24kva

Volage/ currant display

Digital

Control operating

Plc touch  screen

Plate thickness

3-10mm

PLA-TIG501D    plasma welding source (chopped mode)

Brand

Taiwan tpc

Impulse frequencey

1-500hz

Max welding currant

500a

Max duty cycle

100%

Volage/ currant display

Digital

Control operating

Plc touch  screen

Atomatically    wire feeding system

Drive mode

Four wheel

Feeding speed

0-10m/min

Speed control accurancy

±1%

Steel wire diameter

1.0-1.2mm, 0.8-1.6mm

Aluminum wire diameter

1.2-1.6mm

Feeding control

Closed-loop feedback and program


2. Electrical control system





The automation control system adopts mitsubishi plc control. Vfd and relays are from schneider, which are reliable performance.

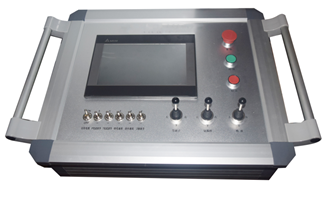

Taida 5.6 inch color touch screen displays operaton and running information. Data communication via optical cable to ensure the data accuation.

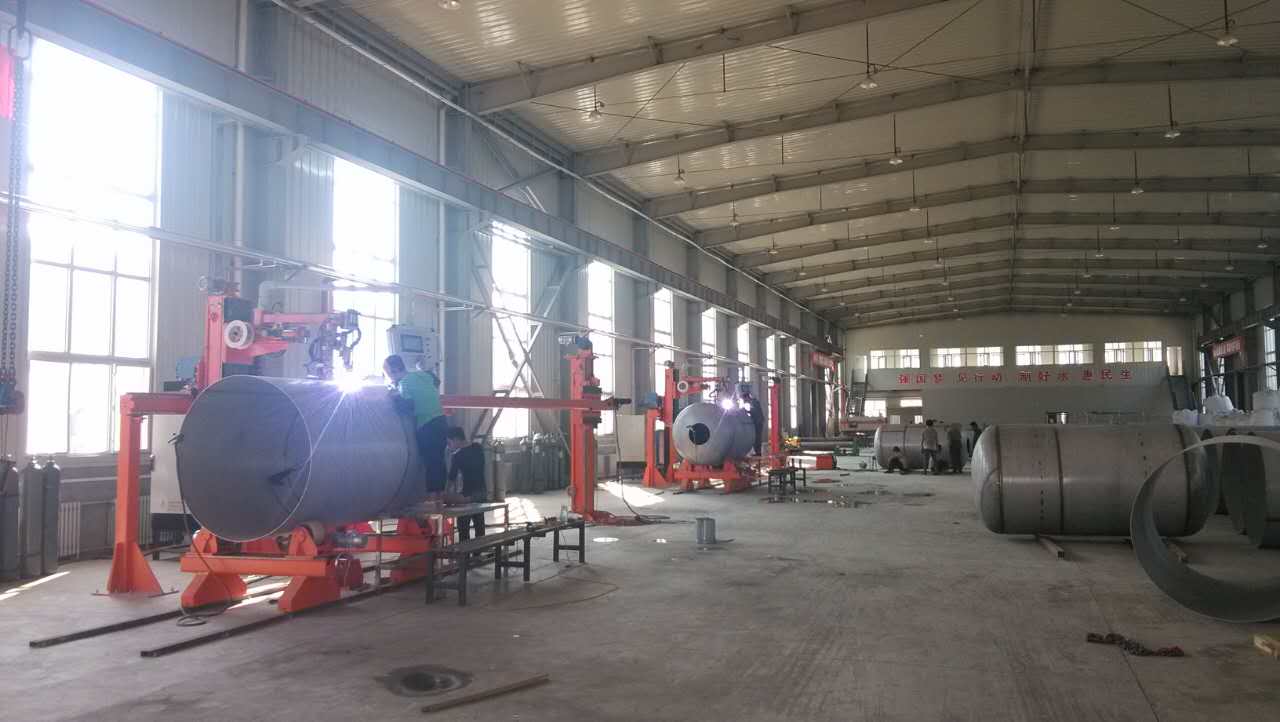

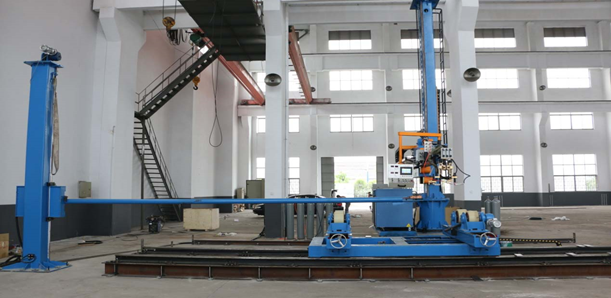

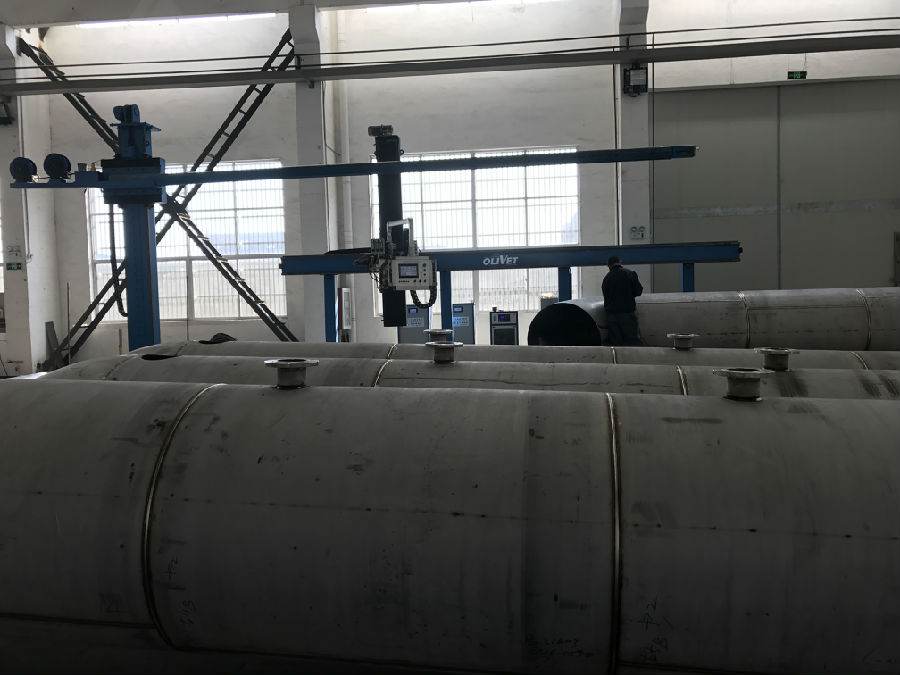

3. Welding Equipments

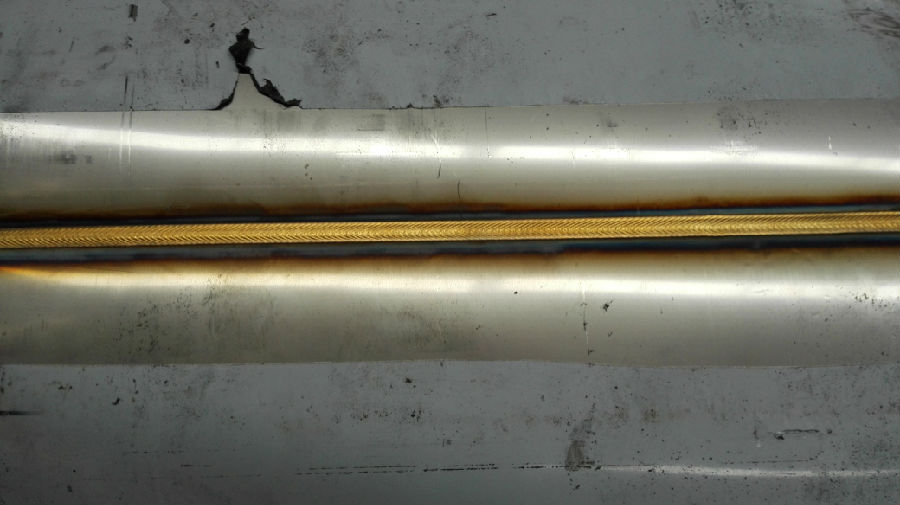

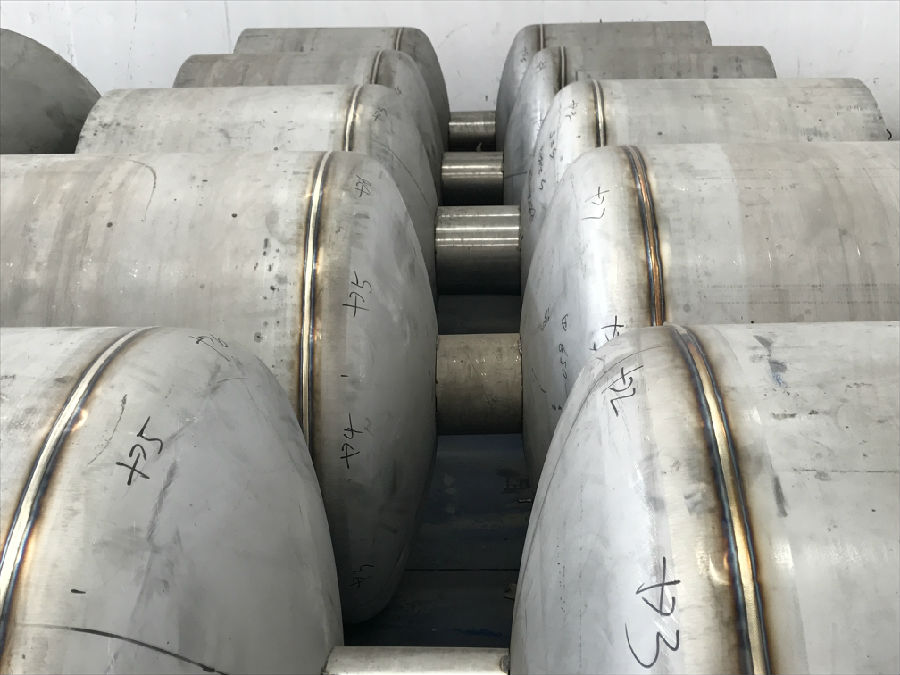

4. Finished tanks
