L Type 3 Axis Welding Positioner - SLBT Series

L Type 3 Axis Welding Positioner - SLBT Series

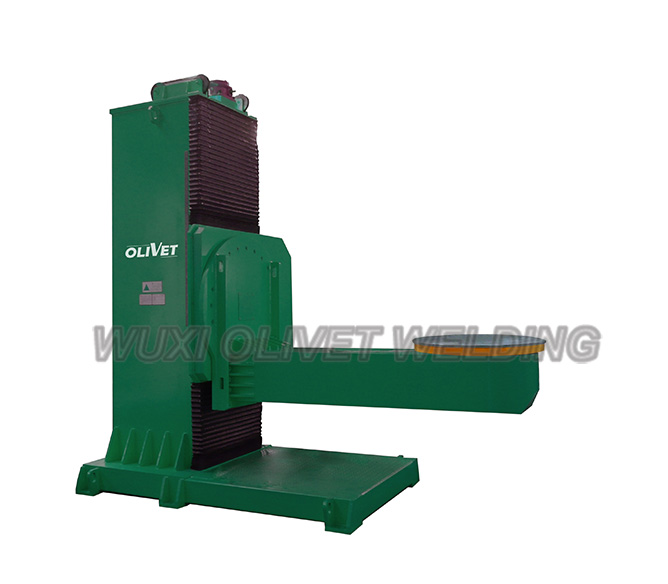

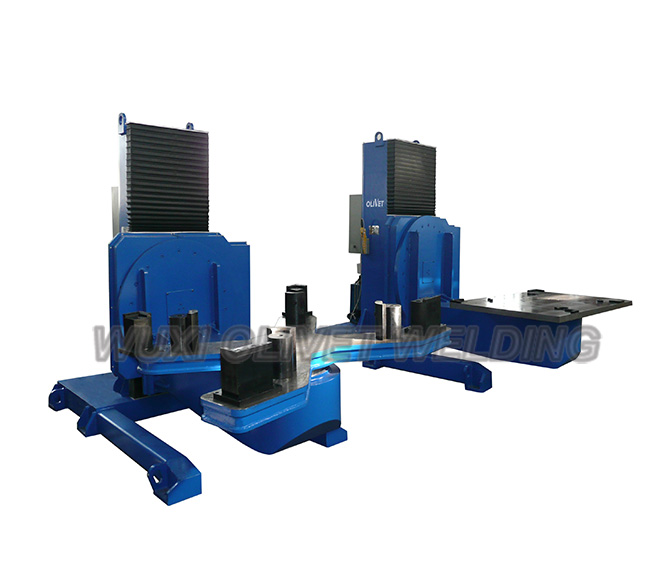

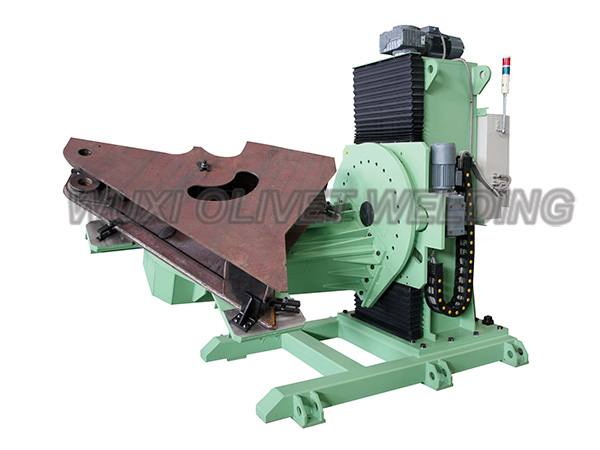

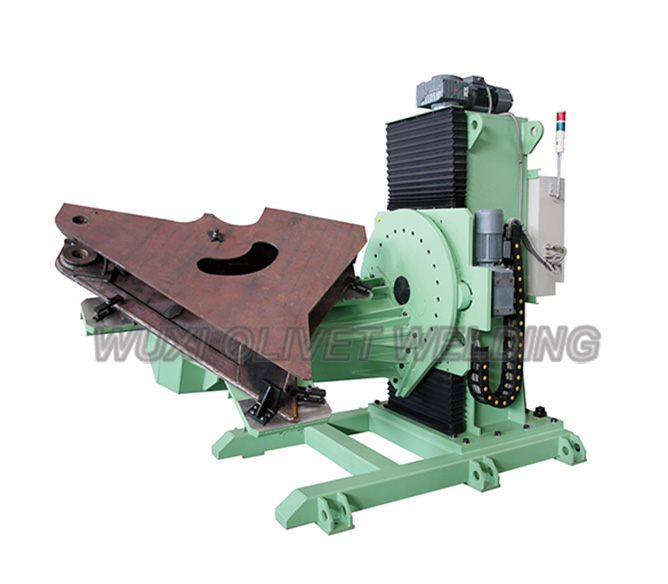

    L-type Three Axies Welding Positioner - SLBT Series


    Stable Rotating Process

    Olivet company has a comprehensive range of positioner for automatic welding. These very versatile handling tools enable welding to be carried out in the optimum positions to benefit the quality of the work. Olivet's positioners are with capacities ranging for 100 to 200,000kgs.

    L-type Three Axies Welding Positioners are the best solution to the problem of lifting, rotating and tilting demanding work pieces. Height, angle and speed are all adjustable. They have infinitely variable height control as a result of a hydraulic cylinder and remote control of all functions.

    Scope of Delivery

    A.  1 Main body

    B. 1 Lifting system

    C.  1 Electric control system

        1 control panel

        1 remote pendant

        1 foot switch


    Main Technical Parameters

    Model

    Max. load

    Rotation peed

    Tilting range

    Tilting Speed

    Rotation motor

    Tilting Motor

    Elevating stroke

    SLBT-05

    500 kg

    0.1-1 rpm

    360?

    1 rpm

    0.75kw

    1.5 kw

    500 mm

    SLBT-10

    1,000 kg

    0.1-1 rpm

    360?

    1 rpm

    1.1 kw

    2.2 kw

    600 mm

    SLBT-15

    1,500 kg

    0.1-1 rpm

    360?

    1 rpm

    1.5 kw

    2.2 kw

    700 mm

    SLBT-30

    3,000 kg

    0.1 – 1 rpm

    360?

    0.5 rpm

    1.5 kw

    3 kw

    800 mm

    SLBT-50

    5,000 kg

    0.1 – 1 rpm

    360?

    0.5 rpm

    2.2 kw

    4 kw

    1200 mm

    SLBT-100

    8,000 kg

    0.1 – 1 rpm

    360?

    0.4 rpm

    3 kw

    5.5 kw

    1500 mm

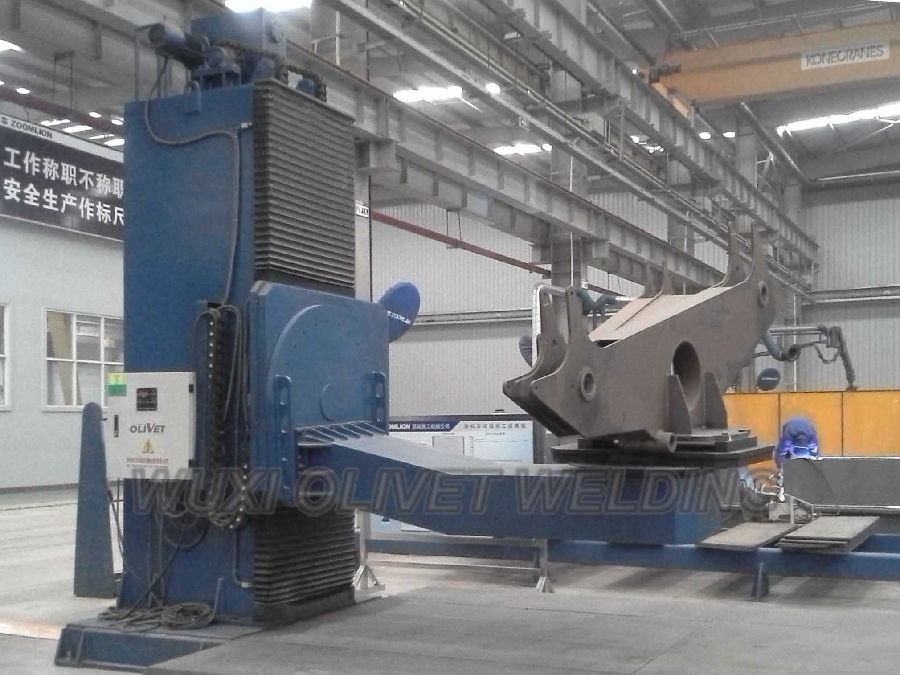

    Application
