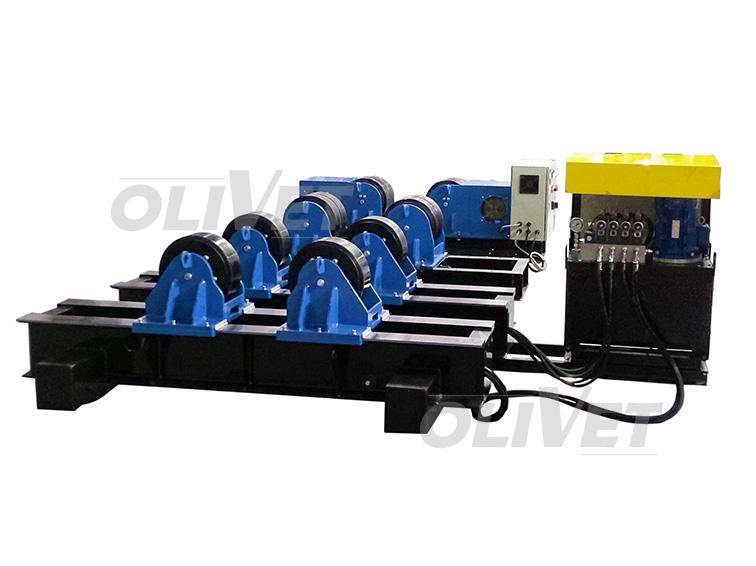

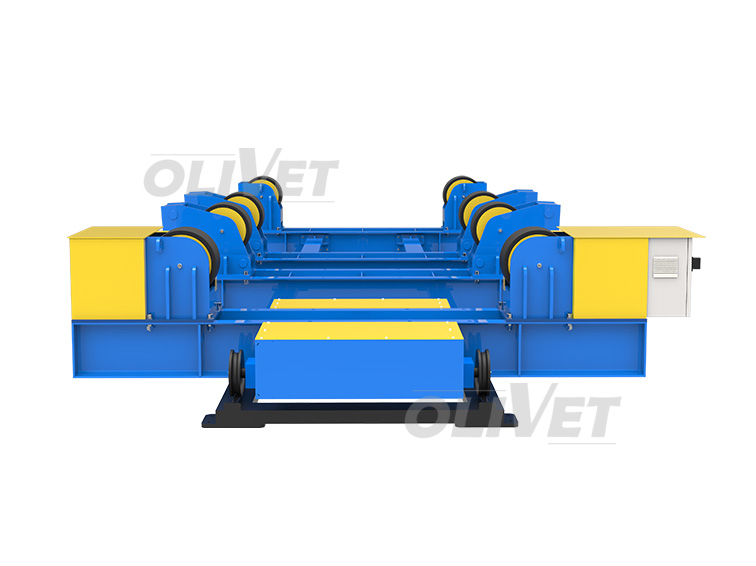

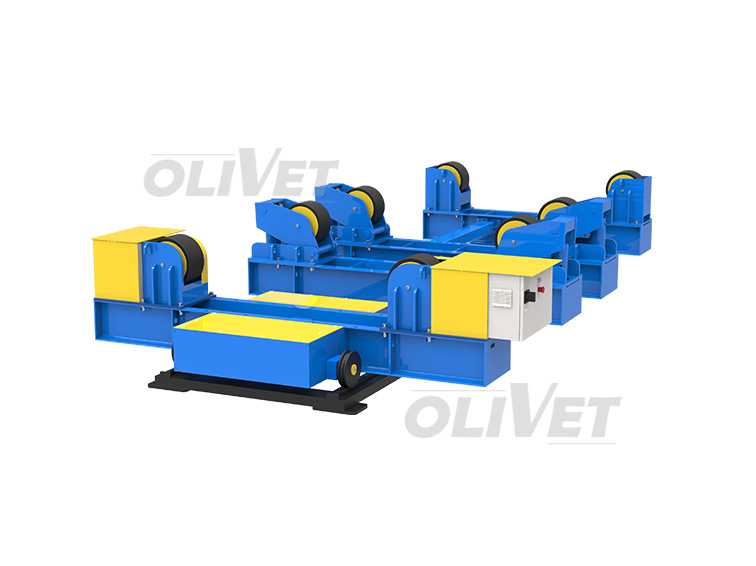

    Fit Up Roller Station - FIT Series


    Stable Speedy Pipes Joining Process

    FIT series Fit UP Roller Bed Station is used for two or three pipes/ shells assembly and welding job.

    Fit fit up station is equipped with two fit-up roller beds, which have four independent hydraulic height adjustment rollers, to ensure the assembly and welding job speedy with a high performance.

    No extra rail tracks, the Fit up roller bed station allow easily to place various sites, inner of workshop or outdoor location.

    Features

    A.  Designed and robustly built to withstand rugged work enviroments

  • B.  Fastest system to assemble 1+1 or 1+1+1 sections

  • C.  Four independent hydraulic adjusting roller to align the two sections with each other

    D.  Large range center distance to match diffrent diameter of workpiecec

    E.  European hydraulic station, Parker oil tube and Schneider elctrical control system

    F.  Ideal for:

        - Wind tower fabrication

        - Pressure vessels

        - Pipe assembly

    Scope of Delivery

    A.  1 Power section, 1 Idler roller bed

    B.   2 Fit up roller beds and hydrulic station

    C.  1 Hydraulic

    D.  1 Electric control system

        1 Main control panel

        1 Remote pendant

    Main Technical Parameters

    Model

    FIT-30

    FIT-40

    Max loading capacity

    30 tons

    40 tons

    Workpiece diameter

    ? 800- ? 3500 mm

    ? 800- ? 4500 mm

    Rolling speed

    100-1000 mm/min

    100-1000 mm/min

    Rolling motor power

    2 X 1.5 kw

    2 X 2.2 kw

    Roller material

    Polyurethane (PU)

    Polyurethane (PU)

    Hydraulic elevating adjusting stroke

    150 mm

    150 mm

    Hydraulic horizontal adjusting
    250mm
    250mm
    Power rotator moving speed
    200-2000mm/min
    200-2000mm/min
