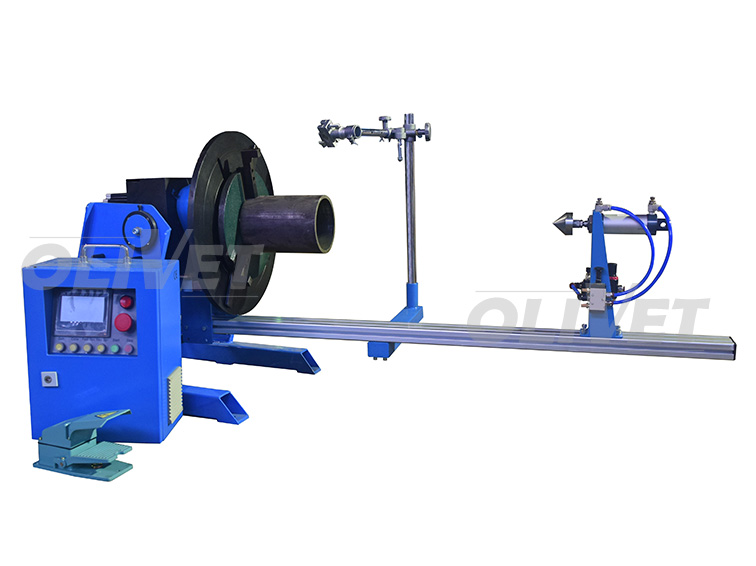

HBJ-CNC Automatic Welding Positioner

HBJ-CNC Automatic Welding Positioner

Olivet's HBJ-CNC Series light duty welding positioners are with capacities ranging for 50 to 300kgs. We accept customized options for customers with different requirements!


Light-duty Positioner - HBJ-CNC Series




Pratical and Versatile

Olivet has a comprehensive range of positioner for automatic welding. These very versatile handling tools enable welding to be carried out in the optimum positions to benefit the quality of the work. Olivet's HBJ-CNC Series light duty welding positioners are with capacities ranging for 50 to 300kgs.



Features

l  For annular welding, cutting, polishing and assembly.

l  Easy to set up a small welding center equipped with quick chuck, torch holder and roller supports.

l  PLC + touch screen to ensure fully auto welding control.

l  4 welding models and 2/4 cycles for free choose.

l  Kinds of extended devices, pneumatic torch holder, cone and welder connecting delay control

l  High frequency protection on electric box

l  Compact and robust design, easy to operate.


Scope of Delivery

A.  1 Body

B.  1 PLC + tourch screen electric box

     1 control foot switch

Main Technical Parameters

Model

Horizontal load

Vertical Load

Rotation speed

Tilting range

Table dia.

Table center    hole

HBJ-CNC50

50   kg

 30   kg

0-9    rpm

0º -90 º/ manual

Ø315    mm

Ø25    mm

HBJ-CNC100

100   kg

50   kg

0-9    rpm

0º -90 º/ manual

Ø400    mm

Ø45    mm

HBJ-CNC200

200    kg

100    kg

0-5    rpm

0º -90 º/ manual

Ø400    mm

Ø 45    mm

HBJ-CNC300

300    kg

200    kg

0-5    rpm

0º -90 º/ manual

Ø500    mm

Ø 90    mm

PLC+   touch screen + stepper motor for fully automatic welding

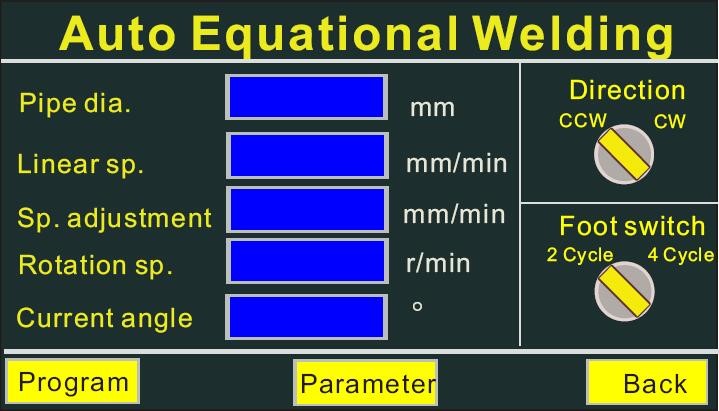

Control touch screen panel setting







Rich Extended devices

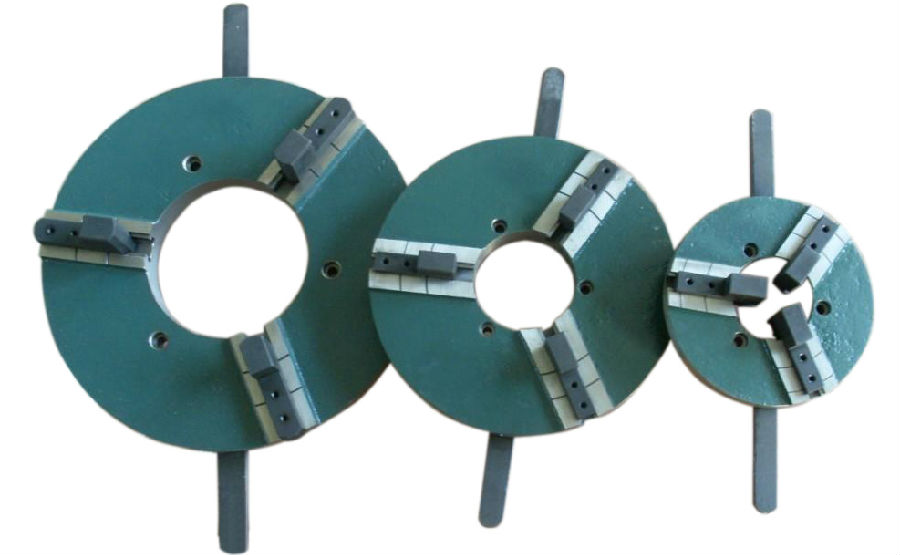

1. Quick Chuck




Model

Load/ clamping  capacity

Inner dia. of  clamping

Outer dia. of  clamping

Clamping range with add. jaws

WP200

30 kg/ 200 kg

Ø110-210 mm

Ø20-130 mm

Ø5-300 mm

WP300

120 kg/ 250 kg

Ø170-280 mm

Ø80-190 mm

Ø10-400 mm

WP400

240 kg/ 350kg

Ø250-380 mm

Ø120-250 mm

Ø20-500 mm

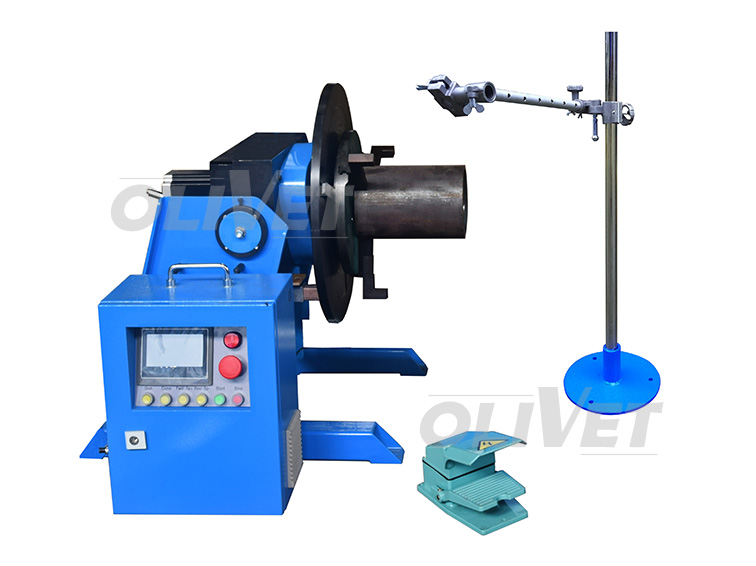

2. Stand torch holder assembly

Model

Vertical stroke

Horizontal stroke

TH-001

1000mm

400mm





3. Manual torch and manual pneumatic cone assembly

No

Item

Parameter

1

Torch holder

3 axis adjusting

2

Pneumatic cone

Airtac pneumatic cylinder with manual valve

3

Aluminium track

European standard 1500m

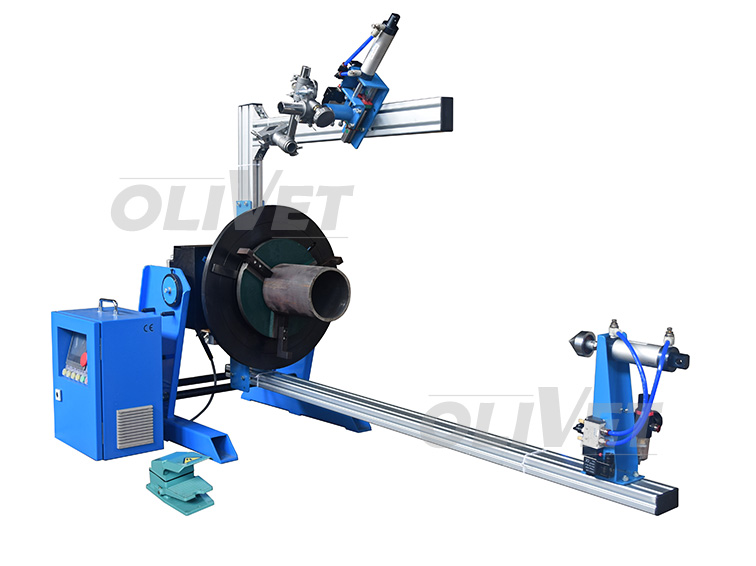

4. Automatic pneumatic torch holder and cone assembly

No

Item

Parameter

1

Auto pneumatic torch holder

3 axis adjusting;  Airtac pneumatic cylinder with magnetic valve

2

Auto pneumatic cone

Airtac pneumatic cylinder with magnetic valve

3

Aluminium track

European standard track; 1200mm for cone and 400/800mm for torch holder
